Neuroendocrine neoplasms of the biliary tree, liver and pancreas: a pathological approach

Review

Department of Diagnostics and Public Health, Section of Pathology, University and Hospital Trust of Verona, Verona, Italy;
Department of Oncology and Hemato-Oncology, University of Milan , Milan, Italy; Inter-Hospital Pathology Division, IRCCS MultiMedica, Milan, Italy
Department of Diagnostics and Public Health, Section of Pathology, University and Hospital Trust of Verona, Verona, Italy; ARC-NET Research Centre,University of Verona, Verona, Italy
Department of Diagnostics and Public Health, Section of Pathology, University and Hospital Trust of Verona, Verona, Italy
Department of Medicine and Surgery, Unit of Pathology, University of Insubria, Varese, Italy
Department of Medicine and Surgery, Unit of Pathology, University of Insubria, Varese, Italy
Department of Medicine and Surgery, Unit of Pathology, University of Insubria, Varese, Italy
Department of Medicine and Surgery, Unit of Pathology, University of Insubria, Varese, Italy
neuroendocrine neoplasms pancreas liver biliary tract

Abstract

Neuroendocrine neoplasms of the pancreatobiliary tract and liver are a heterogeneous group that encompass a spectrum of entities with distinct morphological, biological and clinical features. Although in the various anatomical sub-sites of this region they show specific characteristics, these tumors, as a whole, share several etiological and clinical aspects. This review systematically addresses NENs arising in the extrahepatic bile ducts, gallbladder, liver and pancreas, with the principal aim of pinpointing essential diagnostic and classification issues. In addition, the section on hepatic NENs has been expanded to include metastatic disease of unknown primary site.

Introduction

Neoplastic diseases of the pancreatobiliary tract and liver are rare but potentially life-threatening. Although in the various anatomical sub-sites of this region they show specific biological and morphological features, these tumors, as a whole, share several etiological and clinical aspects. Among pancreatobiliary and hepatic malignancies, neuroendocrine neoplasms (NENs) are among the rarest subtypes. This review will systematically address NENs arising in the extrahepatic bile ducts and gallbladder, in the liver and pancreas, with the principal aim of highlighting essential diagnostic and classification issues. In addition, the paragraph on hepatic NENs has been expanded to include metastatic disease of unknown primary site.

Neuroendocrine neoplasms of the biliary tree and liver

The liver and the intra- and extra-hepatic bile tract (including gallbladder) are the rarest sites of occurrence for NENs, if metastatic lesions are excluded. Here we will revise the available knowledge about primary NENs of the biliary tract and liver and discuss the diagnostic management of metastatic NENs in the liver.

Primary NENs of the extrahepatic bile ducts (EHBD) and of the gallbladder (GB)

Due to the rarity of these entities, clinicopathological studies on large series are lacking. Indeed, even retrospective analyses of large databases and national tumor registries, as well as literature meta-analyses, are poorly affordable, as the nomenclature in this field is often confusing and the distinction between neuroendocrine tumors (NETs) and neuroendocrine carcinomas (NECs) is not well defined 1,2. However, if we consider well documented case reports and case series, as well as reviews and meta-analysis on specific types of NENs, we can summarize the features of NETs and NECs in these sites.

Overall, these neoplasms represent 0.2 to 2% of all NENs, and around 2% of all primary malignancies arising in EHBD and GB 3,4. Gallbladder NENs most commonly arise in women (M:F ratio = 1:4), whereas only a slight female prevalence (M:F ratio = 2:3) is seen in patients with NENs of EHBD 3. All ages can be affected, and rare pediatric cases are also described 5. In these sites, NECs are much more common than NETs and mostly occur in the gallbladder, followed by the common distal bile duct and the common hepatic duct.

Although some authors have suggested that NENs of the biliary tree may arise from neuroendocrine cells of post-inflammatory metaplastic mucosa 6, the most likely hypothesis is that they derive from an epithelial precursor that may also give rise to glandular neoplastic proliferation, in analogy to other gastroenteropancreatic NENs 7. Independently from the specific mechanism of cancerogenesis, the main risk factor for gallbladder NENs is the presence of cholelithiasis and cholecystitis 7, whereas no specific etiology has been identified for NENs of the EHBD. As concerns the pathogenetic mechanisms, little is known about the molecular pathways underlying the development of GB and HEBD NETs, but alterations in tumor-related genes involved in local adenocarcinomas, such as TP53, KRAS and RB1, seem not to be present in these neoplasms 8. An association with von Hippel-Lindau syndrome (VHL) has been proposed for EHBD NETs, as two cases have been reported in VHL patients 9,10. For NECs of these sites, a very recent paper reporting the largest series of GB NECs published until now, showed frequent loss of Rb1, hyperexpression of p16, and no mutation of BRAF in these cases 11. In addition, TP53 point mutation has been found in a case 12, while the presence of microsatellite instability and alterations of genes involved in the ERBB pathway (HMCN1 and CDH10) were reported in a case 13. These results, together with the evidence that GB and EHBD NECs are frequently mixed with invasive and pre-invasive non-neuroendocrine components, and can be called mixed neuroendocrine/non-neuroendocrine neoplasms (MiNENs) 11,12,14-17, suggest that also in these sites NEC may share common pathogenetic pathways with autoctonous adenocarcinomas, in analogy to MiNENs of other digestive and extra-digestive locations 18,19.

Macroscopically, tumor masses have a mean diameter of 2.2 to 3 cm 2,17 in the EHBD, whereas GB NENs are larger (mean diameter 3.5 to 5.6 cm) 11,20,21. In the gallbladder, the most commonly involved subsite is the fundus11. The histopathological appearance of GB and EHBD NETs is similar to NETs of other anatomical sites, with well differentiated neuroendocrine morphology 8, and NECs may be of small or large cell type, and can be found in the context of a MiNEN, mixed with an adenocarcinoma or a papillary neoplasm 11,17,22. At immunohistochemistry, pan-cytokeratins and general neuroendocrine markers (synaptophysin and chromogranin A) are expressed 11,17,22, with variable patterns between NETs and NECs, as described in other sites (Fig. 1) 23. Cytokeratin 7 has been reported to be consistently expressed in GB NECs, in contrast with NECs of other digestive sites 17. CD117 immunostain, which has also been reported to be positive in NECs of other sites, is found in a significant fraction of GB NEC and may represent an additional marker in the differential diagnosis with poorly differentiated adenocarcinoma and with NET and a putative therapeutic target 11. A number of hormonal products have been found in neoplastic cells of a subset of NETs, mainly gastrin and serotonin 2, whereas no data regarding transcription factors and other site-specific markers is available, apart from the nonspecific expression of TTF1 in a subset of NECs 11. Ki-67-related labelling index is far above 20% in NECs, whereas in NETs it may vary from up to 3% (NET G1) to more than 20% (NET G3), through cases in which it ranges between more than 3% but less than 20% 24.

The clinical presentation of EHBD and GB NENs varies according to their site. EHBD NENs become evident due to jaundice and other signs of cholestasis, whereas GB NENs are most often asymptomatic and are occasionally diagnosed during abdominal imaging for nonspecific symptoms or after cholecystectomy for cholecystitis 11,17. Very rare cases become evident with symptoms of hormone hypersecretion or other paraneoplastic syndromes 25. The prognosis of EHBD and GB NENs heavily depends on their morphological characterization. Patients with NECs of small and large cell type have a poor outcome, with an overall survival (OS) at 5 years of 19%, and AJCC stage strongly influences prognosis 11,22. In contrast, NETs bear a better prognosis than adenocarcinomas of the same anatomical sites, with a 10-year OS of 36% for gallbladder NETs and 80% for EHBD NETs 26. The distinction of NENs from adenocarcinomas of the same sites is of paramount importance for establishing a correct treatment, in particular for NECs, which are often diagnosed in advanced stages and benefit from adjuvant platinum-bases chemotherapy 11.

Primary NENs of the liver

Primary hepatic NENs (H-NENs) are exceedingly rare, representing, as a whole, less than 1% of all resected primary neoplasms of the liver 27. The distinction from metastases from other primary site is important to establish the treatment and the prognosis of patients 28,29.

Among H-NENs, NETs are reported to be slightly less frequent than NECs 27,30, and these latter are nearly always associated with a non-neuroendocrine component (hepatocellular carcinoma, HCC) in a MiNEN 18,27. No definite sex prevalence has been reported and mean age at diagnosis in in the adulthood (around 50 years), with very rare cases under the age of 40 30,31. A meta-analysis of 69 cases showed that the most common intrahepatic location was the right lobe, in which half of the cases was detected 31.

The histogenesis of hepatic NENs is controversial and it has been proposed that they may derive from ectopic intrahepatic pancreatic tissue 32, but it is more conceivable that NETs arise from progenitor cells in intrahepatic bile ducts, whereas NECs may follow a common pathogenetic pathway with hepatocellular carcinoma 33. Definitive data on genetic features of H-NENs are lacking, due to their rarity. Only single cases were studied, revealing loss of one copy each of chromosomes 3 and 18, and gain of 1q in a NET G2 metastatic to the orbit 34, whereas TP53 mutations, associated or not with EGFR and other well-known cancer related genes were found in two cases of NEC 35,36.

Macroscopically, H-NENs are expanding masses in the liver parenchyma, with a tannish cut surface that, in NECs, may show areas of necrosis and hemorrhage. NETs are reported to be larger (mean diameter around 5 cm) than NECs (mean diameter around 3 cm) 27. The microscopic appearance of H-NETs is mainly of a trabecular or pseudo-glandular growth of neoplastic cells with well differentiated morphological features 27. General neuroendocrine markers are well expressed, as well as cytokeratins 7, 18, and 19, but HepPar-1, which is a site specific antibody for hepatocellular neoplasms is not expressed 27. Based on Ki-67-related proliferative index NETs may be graded, but until now only G1 and G2 H-NETs have been reported 33. H-NECs are mainly of the small cell subtype, but also large cell variant has been reported 33. Both subtypes have overlapping histopathological features with NECs in other anatomical sites and are typically found in MiNENs, combined with HCC 33. However, occasional MiNENs with a cholangiocarcinoma component have been described 37. Compared with NH-NETs, H-NECs show a lower expression of general neuroendocrine markers and of cytokeratins. HepPar-1 is consistently negative also in NECs 27. As a whole, there are no specific morphological or immunohistochemical characteristics that may support the diagnosis of a primary H-NEN versus a metastasis and the practicing pathologist should always be aware that a primary H-NEN is always a diagnosis of exclusion, after careful consideration of all clinical and radiological information.

The clinical presentation of H-NENs may include nonspecific abdominal symptoms, such as abdominal discomfort or diarrhea, but a significant proportion of cases is asymptomatic 30. Serum liver tests are mostly in the normal range and circulating tumor markers have no diagnostic value 30. Symptoms of hormone hypersecretion (Zollinger-Ellison syndrome, Cushing syndrome and hypercalcemia due to gastrin, adrenocorticotroph hormone, and parathyroid hormone, respectively) have been reported 38-40. The most important prognostic parameters is the distinction between NETs and NECs and the possibility of radical surgery 30.

NENs metastatic to the liver

Virtually all NENs have metastatic potential, and 90% of symptomatic patients with symptomatic NENs have synchronous metastases at diagnosis, and up to 20% of the cases present as metastasis from an occult primary 41. The identification of the primary site is an important step towards the correct management of the patient, particularly for NETs, as the therapeutic approach may vary depending on the primary site and cell type. In addition, even when liver metastases are unresectable, the surgical treatment of the primary NET has been shown to have a positive impact of patient’s outcome 42. Consequently, thorough morphological and immunohistochemical analyses are expected to give important clues to the recognition of the site of origin of a metastatic NET. In contrast, NECs, independent of the primary site, are currently treated with platinum-based regimens, and the role of the pathologist may be limited to the distinction between a visceral NEC and a Merkel cell carcinoma of the skin, because the latter requires wide local excision, sentinel node biopsy and possibly radiotherapy. Of note, most of the diagnostic approaches discussed below have poor reliability in the context of NECs. Irrespective of the primary site, the liver represents the most frequent location of metastatic NENs and liver biopsy is the most common specimen with which the practicing pathologist is faced in the challenge of differential diagnosis.

Digestive NETs, particularly ileal (Fig. 2) and pancreatic NETs, are the major sources of liver metastases among all NETs. However, also thoracic NETs may not infrequently give hepatic secondary localizations. As pure morphological features are frequently too subtle to recognize and are also commonly obscured by crash artifacts in small liver samples, immunohistochemistry turns out to be the corner stone of the differential diagnosis in this setting. The wise use of a step-wise immunohistochemical approach using transcription factors, hormones and other markers, such as carcinoembryonic antigen (CEA), prostate-specific acidic phosphatase (PSAP), and others, may be very helpful to identify the unknown primary site of a metastatic NET 23,41. In this respect, despite the existence of a wide range of available antibodies for each putative primary site (Tab. I), an algorithmic approach is desirable to avoid waste of time and of financial resources (Fig. 3). In fact, after the initial confirmation of the epithelial and neuroendocrine nature of the proliferation using pan-cytokeratins and general neuroendocrine markers (synaptophysin, chromogranin A and, lately, the new marker INSM1), as well as of its well differentiated morphology, the use of TTF1 and CDX2 may represent an initial step for the triage of the possible primary site. Immunoreactivity for CDX2 points towards a gastroenteropancreatic (GEP) origin, whereas TTF1 is reminiscent of a thoracic primary. The additional use of the transcription factor PDX1, which has been reported to have a certain specificity for pancreatic NETs, may be considered, although, even in expert hands, the immunoreaction with commercially available antibodies may be difficult to evaluate. In CDX2-positive metastases, the employment of antibodies directed against hormonal products like serotonin, pancreatic hormones and glucagon-related peptides may give clues to an ileal, pancreatic, or colo-rectal origin, respectively. In addition, other markers may be of help in confirming, for example, an ileal (substance P), colo-rectal (PSAP), gastric (vesicular monoamine transporter 2, v-MAT2) or duodenal (gastrin, somatostatin) primary. In this setting, one should not forget the importance of using immunohistochemical panels, and not just single antibodies, as no individual marker has absolute sensitivity and specificity in identifying an unknown primary. Just as an example, the positive immunostain for TTF1 is not exclusive of lung NETs (carcinoids), as, in the context of NENs, medullary thyroid carcinomas (MTCs) are also TTF1-positive and, in turn, calcitonin expression is not an absolutely affordable marker of MTCs, as also lung NETs may stain positive for this hormone. In such case, a positive stain for CEA favors MTC versus lung NET 41.

Liver metastases from NETs arising in rare sites (extra-GEP and extra-thoracic) are possible findings and even in this case immunohistochemistry may be of help (Tab. I, Fig. 1). For example, the possibility of metastases from pituitary NETs should not be underestimated, particularly in the clinical context of a Cushing syndrome 43. In this case, the use of pituitary-specific transcription factors may be useful to reach a correct diagnosis. Finally, another useful immunohistochemical tool that can support the clinical search for the unknown primary site of a NET is the immunostain for somatostatin receptors (SSTRs). Indeed, a strong membranous positivity for SSTR2A and/or for SSTR5 has a good correlation with the avidity of the neoplasm for somatostatin analogues-based imaging that can identify the primary NET 44.

In conclusion, the workup of a metastatic NEN represents a critical responsibility of pathologists. It requires careful interpretation of clinical, morphologic and immunohistochemical findings. The use of a panel of approach combining cytokeratins along with anatomic site-related transcription factors, hormones and other biomarkers can assist identifying the origin of the metastatic NEN. The power of this approach is limited in the setting of poorly differentiated NENs (NECs).

Neuroendocrine neoplasms of the pancreas

NENs of the pancreas (PanNENs) are a heterogeneous group of tumors with different histologic, molecular and clinical features. The current World Health Organization (WHO) diagnostic guidelines have refined their classification, which reflects more appropriately the different biological landscapes and prognostic implications 24.

Definition/Terminology. The heterogeneous group of neuroendocrine lesions of the pancreas has been named as pancreatic neuroendocrine neoplasm (PanNEN). The current WHO classification subdivides PanNEN in three main categories: i) pancreatic neuroendocrine microadenoma (lesion < 5 mm); ii) well-differentiated pancreatic neuroendocrine tumor (PanNET), which includes functional PanNETs (F-PanNENs; tumors with clinical evidence of hormone production, such as insulinoma, glucagonoma, gastrinoma, VIPoma, etc.) and non-functional PanNETs (NF-PanNET); iii) poorly differentiated pancreatic neuroendocrine carcinoma (PanNEC), featuring either small cell or large cell PanNECs 24.

The last WHO classification has subdivided PanNETs into three subgroups of tumors: i) Grade 1 PanNET (PanNET G1): < 2 mitoses/2 mm2 and a Ki-67 proliferation index < 3%; Grade 2 PanNET (PanNET G2): 2-20 mitoses/2 mm2 or a Ki-67 proliferation index of 3-20%; Grade 3 PanNET (PanNET G3): > 20 mitoses/2 mm2 or a Ki-67 proliferation index > 20% 24. This last category represents the main novelty in PanNENs classification, and should be distinguished from PanNEC, which in turn includes small-cell and large-cell carcinoma 24.

A last category to be considered is represented by MiNEN. Both components must represent at least 30% of the total tumor mass, are usually high-grade (G3) and the non-neuroendocrine part is generally represented by acinar carcinoma or ductal adenocarcinoma 18,19,24.

Macroscopic description. Because of their small size, microadenoma are rarely documented during routine sampling. PanNETs are usually brownish lesions, with lobulated or pushing borders and soft to fleshy consistency. The vast majority of PanNETs are encapsulated, at least in part, and sharply demarcated from the adjacent pancreatic parenchyma. Cystic changes are rare but, if present, a unilocular cyst is reported. Conversely, PanNECs generally show infiltrative margins, hard consistency and brownish to whitish color; typically, necrotic areas are reported.

Histopathology. A classic example of neuroendocrine microadenoma is shown in Figure 4, and paradigmatic examples of PanNETs G1, G2 and G3 and of PanNEC are depicted in Figure 5. By definition, neuroendocrine microadenoma is a small and well differentiated neuroendocrine neoplasm. Histologically, NF-PanNETs display a well-differentiated growth pattern, with a spectrum of architectural patterns, including solid-nesting, paraganglioma-like, trabecular, gyriform and glandular aspects24,45,46. The stroma is highly vascular, but areas with dense and hyalinized collagen are often present. Most of neoplastic cells are monomorphic, cuboidal and with the classic nuclei showing “salt and pepper” chromatin texture 24,45,46. They are centrally located and polarized. In addition to these classical aspects, some functional PanNETs may exhibit particular features, although distinctive morphological hallmarks are lacking. The more peculiar histological features for functional PanNETs are the following: i) insulinoma: trabecular and solid growth patterns, with normal pancreatic ducts often entrapped within tumor mass; a stromal deposit of islet amyloid polypeptide is quite specific but very rare (5% of cases) 47; ii) gastrinoma: trabecular and glandular growth patterns 48; iii) glucagonoma: presence of densely arranged trabecular structures with scant stroma 49; iv) somatostatinoma: psammomatous calcification are quite common, although they are more typical of duodenal location 50; v) serotonin-producing PanNETs: a trabecular architecture is the most common pattern, and vascular / perineural invasion is frequent even in G1 tumors 51.

PanNECs present distinctive histologic features and have been subdivided in small-cell and large-cell PanNECs24. Small-cell PanNECs are characterized by diffuse sheets of cells with scant cytoplasm, round or elongated nuclei and finely granular chromatin. As in the pulmonary counterpart, nuclear moulding may be also present 24,52. Large-cell PanNECs is a more common subtype, and is composed by round to polygonal large cells with coarse chromatin and prominent nuclei 24,52. Both small-cell and large-cell PanNECs show necrotic areas, often with a comedo-like appearance.

MiNEN are mixed neuroendocrine-non-neuroendocrine neoplasms, where which each counterpart accounts at least for 30% of the entire lesion 24,53. The non-neuroendocrine counterpart, which is usually represented by acinar cell carcinoma or ductal adenocarcinoma, reflects its conventional morphology.

Immunohistochemical and molecular markers. As neuroendocrine neoplasms, PanNETs are usually stained by pan-cytokeratins and general neuroendocrine markers such as Synaptophysin and Chromogranin-A, with known variability between NETs and NECs 23,24. Other markers that may be added to the diagnostic PanNET algorythm, but have low accurancy are: i) CD56, which has a high sensitivity but a low specificity, ii) CD200, which stains in the pancreas both PanNETs and solid pseudopapillary neoplasms (SPNs), iii) Islet-1, whose expression is not restricted to PanNETs but is also commonly found in well and poorly differentiated NENs in extrapancreatic sites 23,24,56. In the prognostic grading of PanNETs, the evaluation of Ki-67 proliferation index (using clone MIB1) is crucial, as stated before in this review. Ki-67 may be useful also in the differential diagnosis between PanNET G3 vs. PanNEC 52. In the former, Ki-67 distribution is heterogeneous and usually shows areas with a low (< 20%) proliferation, together with highly proliferating areas, whereas PanNECs displays a more homogeneous staining, usually present in a very high proportion of neoplastic cell nuclei (> 60%). Immunohistochemical stains for hormonal products (both pancreatic and ectopic) may provide additional information for the characterization of both F-PanNENs and NF-PanNENs 23,57, but it has to be noticed that the specific diagnosis of F-PanNET must be based on the hormone-related clinical syndrome rather than immunohistochemical analysis 24.

PanNETs display a mutational profile that includes MEN1, DAXX and ATRX as the most commonly mutated genes, with DAXX and ATRX mutations being mutually exclusive 58. Collectively, about 60% of PanNETs carry MEN1/DAXX/ATRX mutations. DAXX and ATRX mutations have been recently associated with poor prognosis 55. Furthermore, the biological process of alternative lengthening of telomeres (ALT), which is a telomerase-independent mechanism used by different tumors to maintain the telomere length thus increasing cell replication’s potential, is activated in a subset of PanNETs and associated with an increased rate of distant metastases 59. PanNECs commonly bear TP53 and RB1 mutations, which are reflected by abnormal expression patterns of the related proteins, so that the differential diagnosis between PanNET G3 vs. PanNEC can be supported by immunohistochemistry 24,52. Indeed, an abnormal expression pattern for p53 and the loss of Rb immunostain strongly corroborate a PanNEC diagnosis against a PanNET G3. The genetic differences between PanNET and PanNEC is in keeping with the assumption that they are distinctive and separate tumor entities 45,52.

Differential diagnosis. Besides the importance of the distinction between PanNETs G3 and PanNECs, the main differential diagnoses of PanNENs include pancreatic non-neuroendocrine epithelial malignancies with solid and/or organoid pattern of growth, such as acinar cell carcinoma (ACC), solid pseudopapillary neoplasm (SPN) and pancreatoblastoma. Morphology and immunohistochemistry are the corner stones of a correct a diagnostic panel of antibodies including CD10, vimentin, β-catenin and LEF1 for SPNs, and Bcl10 and trypsin for acinar cell carcinomas is advisable in selected cases 60,61.

Clinical aspects. PanNETs and PanNECs display distinctive features also under clinical aspects. Most NF-PanNETs are small and located in the pancreatic tail, thus they are identified incidentally and patients do not have specific tumor-related symptoms 24,45. F-PanNETs present with hormone-related syndromes (e.g., fasting hypoglycemia in insulinomas, diarrhea with dermatitis in glucagonomas, Zollinger-Ellison syndrome in gastrinomas). Patients with PanNEC present more often mass-related symptoms and show rapid clinical progression, requiring prompt cytotoxic chemotherapy, usually with platinum-based regimens 45. If achievable, complete surgical resection remains the most effective modality for the treatment of PanNENs.

Figures and tables

Figure 1.Small cell neuroendocrine carcinoma of the gallbladder. Solid growth of poorly differentiated small cells with zonal necrosis (A). Ki-67-related index is higher than 80% (B) and tumor cells are immunoreactive for synaptophysin (C) and chromogranin A (D). (Hematoxylin-eosin and immunoperoxidase, original magnification x100).

Figure 2.Ileal NET G2 metastatic to the liver (A) strongly immunoreactive for synaptophysin (B), chromagranin A (C) and CDX2 (D). Ki67 proliferation index is about 15% (E) and somatostatin receptor 2A shows strong membranous stain (F) (hematoxylin-eosin and immunoperoxidase, original magnification x100).

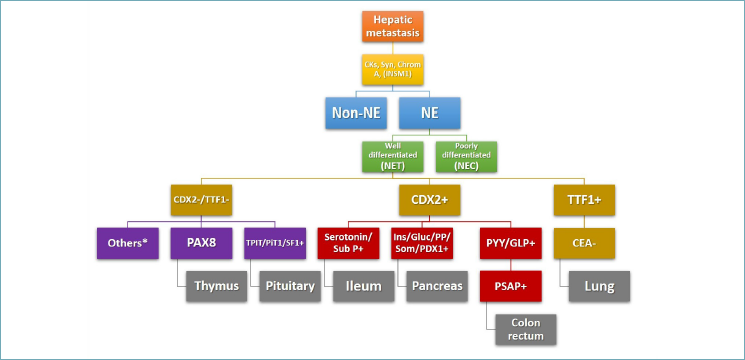

Figure 3.Practical diagnostic algorithm for the identification of the unknown primary site of a metastatic neuroendocrine tumor (NET). CKs, Cytokeratins; NE, Neuroendocrine; Syn, synaptophysin; Chrom A, chromogranin A; Sub P, substance P; Ins, insulin; Gluc, glucagon; Som, somatostatin; GLP, glucagon-like peptides; PSAP, prostate-specific acidic phosphatase; *GATA3 for breast NENs (but it is also positive in gonadotroph pituitary NETs); SSTR2A and SSTR5 to predict avidity to somatostatin analogues-based imaging.

Figure 4.Example of a classical neuroendocrine microadenoma. This category includes small (<0.5 cm) well-differentiated neuroendocrine neoplasms. Original magnification: x20.

Figure 5.The entire spectrum of PanNET/NEC is shown. A-C: well differentitated PanNETs, as follows: A) PanNET G1, B) PanNET G2, C) PanNET G3; D) PanNEC (black asterisks indicate tumor necrosis). Original magnification: X10.

Putative primary site Transcription factors Hormones Other markers
Pituitary Pit1, SF1, Tpit, ER-α, GATA-2, GATA-3 PRL, GH, TSH, ACTH, FSH, LH, α-SU
Thyroid PAX8, TTF1 Calcitonin CEA, CGRP
Parathyroid GATA-3 PTH
Lung TTF1, OTP Bombesin, serotonin, calcitonin
Stomach CDX2 (Histamine), Serotonin, Ghrelin v-MAT2
Duodenum ISL-1, PDX-1, CDX2 Somatostain, Gastrin
Pancreas ISL-1, PAX6, PDX-1, CDX2 Insulin, Glucagon, PP, Somatostatin, Gastrin, VIP, ACTH, Serotonin, Calcitonin, others
Jejunum/Ileum CDX2 Serotonin v-MAT1
Appendix CDX2 Serotonin, Glucagon-like peptides
Colon-rectum CDX2 PYY, Glucagon-like peptides, Serotonin Prostatic acid phosphatase
Paraganglioma GATA-3 (Catecholamines) Tyrosine hydroxylase, v-MAT1, v-MAT2
Table I.Useful immunohistochemical markers for the identification of the occult primary site of a NEN.

References

  1. Ayabe RI, Wach M, Ruff S. Primary Gallbladder Neuroendocrine Tumors: Insights into a Rare Histology Using a Large National Database. Ann Surg Oncol. 2019; 26:3577-85. DOI
  2. Michalopoulos N, Papavramidis TS, Karayannopoulou G. Neuroendocrine tumors of extrahepatic biliary tract. Pathol Oncol Res. 2014; 20:765-75. DOI
  3. Modlin IM, Shapiro MD, Kidd M. An analysis of rare carcinoid tumors: clarifying these clinical conundrums. World J Surg. 2005; 29:92101. DOI
  4. Niu C, Wang S, Guan Q. Neuroendocrine tumors of the gallbladder. Oncol Lett. 2020; 19:3381-8. DOI
  5. Tonnhofer U, Balassy C, Reck CA. Neuroendocrine tumor of the common hepatic duct, mimicking a choledochal cyst in a 6-year-old child. J Pediatr Surg. 2009; 44:E23-5. DOI
  6. Albores-Saavedra J, Nadji M, Henson DE. Intestinal metaplasia of the gallbladder: a morphologic and immunocytochemical study. Hum Pathol. 1986; 17:614-20. DOI
  7. Eltawil KM, Gustafsson BI, Kidd M. Neuroendocrine tumors of the gallbladder: an evaluation and reassessment of management strategy. J Clin Gastroenterol. 2010; 44:687-95. DOI
  8. Maitra A, Krueger JE, Tascilar M. Carcinoid tumors of the extrahepatic bile ducts: a study of seven cases. Am J Surg Pathol. 2000; 24:1501-10. DOI
  9. Fellows IW, Leach IH, Smith PG. Carcinoid tumor of the common bile duct - a novel complication of von Hippel-Lindau syndrome. Gut. 1990; 31:728-9. DOI
  10. Nafidi O, Nguyen BN, Roy A. Carcinoid tumor of the common bile duct: a rare complication of von Hippel-Lindau syndrome. World J Gastroenterol. 2008; 14:1299-1301. DOI
  11. Lee SM, Sung CO. Neuroendocrine carcinomas of the gallbladder: a clinicopathologic and immunohistochemical analysis of 34 resected cases. Am J Surg Pathol. 2020; 44:1308-21. DOI
  12. Sciarra A, Missiaglia E, Trimech M. Gallbladder Mixed Neuroendocrine-Non-neuroendocrine Neoplasm (MiNEN) arising in intracholecystic papillary neoplasm: clinicopathologic and molecular analysis of a case and review of the literature. Endocr Pathol. 2020; 31:84-93. DOI
  13. Li M, Liu F, Zhang Y. Whole-genome sequencing reveals the mutational landscape of metastatic small-cell gallbladder neuroendocrine carcinoma (GB-SCNEC). Cancer Lett. 2017; 10(391):20-7. DOI
  14. Kaino M, Kaino S, Goma W. A case of mixed neuroendocrine non-neuroendocrine neoplasm of the distal bile duct with biliary intraepithelial neoplasia. Clin J Gastroenterol. 2020.
  15. Zhang L, Yang Z, Chen Q. Mixed adenoendocrine carcinoma in the extrahepatic biliary tract: A case report and literature review. Oncol Lett. 2019; 18:1585-96. DOI
  16. Skalický A, Vištejnová L, Dubová M. Mixed neuroendocrine-non-neuroendocrine carcinoma of gallbladder: case report. World J Surg Oncol. 2019; 22(17):55. DOI
  17. Zhang L, Wan D, Bao L. Neuroendocrine carcinoma in the extrahepatic biliary tract: A case report and literature review. Medicine (Baltimore). 2018; 97:e11487. DOI
  18. La Rosa S, Sessa F, Uccella S. Mixed Neuroendocrine-Nonneuroendocrine Neoplasms (MiNENs): unifying the concept of a heterogeneous group of neoplasms. Endocr Pathol. 2016; 27:284-311. DOI
  19. Uccella S, La Rosa S. Looking into digestive mixed neuroendocrine - nonneuroendocrine neoplasms: subtypes, prognosis, and predictive factors. Histopathology. 2020; 77:700-17. DOI
  20. Chu H, Zhang C, Shi Y. Gallbladder neuroendocrine carcinoma:a single center experience. Medicine (Baltimore). 2020; 99:e21912. DOI
  21. Liu W, Chen W, Chen J. Neuroendocrine carcinoma of gallbladder: a case series and literature review. Eur J Med Res. 2019; 24:8. DOI
  22. Raiker R, Chauhan A, Hasanein H. Biliary tract large cell neuroendocrine carcinoma: current evidence. Orphanet J Rare Dis. 2019; 14:266. DOI
  23. Uccella S, La Rosa S, Volante M. Immunohistochemical biomarkers of gastrointestinal, pancreatic, pulmonary, and thymic neuroendocrine neoplasms. Endocr Pathol. 2018; 29:150-68. DOI
  24. Bosman FT, Carneiro F, Hruban RH. WHO Classification of tumours of the digestive system. IARC press: Lyon; 2019.
  25. Price TN, Thompson GB, Lewis JT. Zollinger-Ellison syndrome due to primary gastrinoma of the extrahepatic biliary tree: three case reports and review of literature. Endocr Pract. 2009; 15:737-49.
  26. Albores-Saavedra J, Batich K, Hossain S. Carcinoid tumors and small-cell carcinomas of the gallbladder and extrahepatic bile ducts: a comparative study based on 221 cases from the Surveillance, Epidemiology, and End Results Program. Ann Diagn Pathol. 2009; 13:378-83. DOI
  27. Nomura Y, Nakashima O, Akiba J. Clinicopathological features of neoplasms with neuroendocrine differentiation occurring in the liver. J Clin Pathol. 2017; 70:563-70. DOI
  28. Qiu MJ, Chen YB, Bi NR. Comparative clinical analysis of gastroenteropancreatic neuroendocrine carcinomas with liver metastasis and primary hepatic neuroendocrine carcinomas. Dis Markers. 2018; 2018:9191639. DOI
  29. Shen YH, Chen S, Zhang WT. Clinical analysis of gastroenteropancreatic neuroendocrine tumor with liver metastasis, compared with primary hepatic neuroendocrine tumor. J Cancer Res Ther. 2014;276-80. DOI
  30. Chen RW, Qiu MJ, Chen Y. Analysis of the clinicopathological features and prognostic factors of primary hepatic neuroendocrine tumors. Oncol Lett. 2018; 15:8604-10. DOI
  31. Gravante G, De Liguori Carino N, Overton J. Primary carcinoids of the liver: a review of symptoms, diagnosis and treatments. Dig Surg. 2008; 25:364-8. DOI
  32. Yu-Ping X., Ji-Yao Y. Primary neuroendocrine carcinoma of the liver. Ultrastruct Pathol. 1988; 10:331-6. DOI
  33. Klimstra DS. WHO Classification of Tumors Editorial Board. Digestive system tumors. IARC press: Lyon; 2019.
  34. Rasmussen JØ, von Holstein SL, Prause JU. Genetic analysis of an orbital metastasis from a primary hepatic neuroendocrine carcinoma. Oncol Rep. 2014; 32:1447-50.
  35. Shastri A, Msaouel P, Montagna C. Primary hepatic small cell carcinoma: two case reports, molecular characterization and pooled analysis of known clinical data. Anticancer Res. 2016; 36:271-7.
  36. Pastrián LG, Ruz-Caracuel I, Gonzalez RS. Giant primary neuroendocrine neoplasms of the liver: report of 2 cases with molecular characterization. Int J Surg Pathol. 2019; 27:893-9. DOI
  37. Zheng SL, Yip VS, Pedica F. Intrahepatic bile duct mixed adenoneuroendocrine carcinoma: a case report and review of the literature. Diagn Pathol. 2015; 10:204. DOI
  38. Rascarachi G, Sierra M, Hernando M. Primary liver carcinoid tumour with a Zollinger Ellison syndrome - an unusual diagnosis: a case report. Cases J. 2009; 2:6346. DOI
  39. Shah NA, Urusova IA, D’Agnolo A. Primary hepatic carcinoid tumor presenting as Cushing’s syndrome. J Endocrinol Invest. 2007; 30:327-33. DOI
  40. Kwon HJ, Kim JW, Kim H. Combined hepatocellular carcinoma and neuroendocrine carcinoma with ectopic secretion of parathyroid hormone: a case report and review of the literature. J Pathol Transl Med. 2018; 52:232-7. DOI
  41. Uccella S, Asa SL, Mete O. The spectrum of neuroendocrine neoplasia. Springer: Cham; 2021. DOI
  42. Capurso G, Bettini R, Rinzivillo M. Role of resection of the primary pancreatic neuroendocrine tumour only in patients with unresectable metastatic liver disease: a systematic review. Neuroendocrinology. 2011; 93:223-9. DOI
  43. Venable ER, Kerr SE, Lopes MBS. Liver metastases from pituitary carcinomas mimicking visceral well-differentiated neuroendocrine tumors: a series of four cases. Diagn Pathol. 2020; 15:81. DOI
  44. Volante M, Brizzi MP, Faggiano A. Somatostatin receptor type 2A immunohistochemistry in neuroendocrine tumors: a proposal of scoring system correlated with somatostatin receptor scintigraphy. Mod Pathol. 2007; 20:1172-82. DOI
  45. Tang LH. Pancreatic neuroendocrine neoplasms: landscape and horizon. Arch Pathol Lab Med. 2020. DOI
  46. Xue Y, Reid MD, Pehlivanoglu B. Morphologic variants of pancreatic neuroendocrine tumors: clinicopathologic analysis and prognostic stratification. Endocr Pathol. 2020; 31:239-253. DOI
  47. Anlauf M, Wieben D, Perren A. Persistent hyperinsulinemic hypoglycemia in 15 adults with diffuse nesidioblastosis: diagnostic criteria, incidence, and characterization of beta-cell changes. Am J Surg Pathol. 2005; 29:524-33. DOI
  48. Rosentraeger MJ, Garbrecht N, Anlauf M. Syndromic versus non-syndromic sporadic gastrin-producing neuroendocrine tumors of the duodenum: comparison of pathological features and biological behavior. Virchows Arch. 2016; 468:277-87. DOI
  49. Hamid QA, Bishop AE, Sikri KL. Immunocytochemical characterization of 10 pancreatic tumours, associated with the glucagonoma syndrome, using antibodies to separate regions of the pro-glucagon molecule and other neuroendocrine markers. Histopathology. 1986; 10:119-33. DOI
  50. Noë M, Pea A, Luchini C. Whole-exome sequencing of duodenal neuroendocrine tumors in patients with neurofibromatosis type 1. Mod Pathol. 2018; 31:1532-8. DOI
  51. McCall CM, Shi C, Klein AP. Serotonin expression in pancreatic neuroendocrine tumors correlates with a trabecular histologic pattern and large duct involvement. Hum Pathol. 2012; 43:1169-76. DOI
  52. Yachida S, Vakiani E, White CM. Small cell and large cell neuroendocrine carcinomas of the pancreas are genetically similar and distinct from well-differentiated pancreatic neuroendocrine tumors. Am J Surg Pathol. 2012; 36:173-84. DOI
  53. Luchini C, Capelli P, Scarpa A. Pancreatic ductal adenocarcinoma and its variants. Surg Pathol Clin. 2016; 9:547-60. DOI
  54. Pelosi G, Zamboni G, Doglioni C. Immunodetection of proliferating cell nuclear antigen assesses the growth fraction and predicts malignancy in endocrine tumors of the pancreas. Am J Surg Pathol. 1992; 16:1215-25. DOI
  55. Pelosi G, Bresaola E, Bogina G. Endocrine tumors of the pancreas: Ki-67 immunoreactivity on paraffin sections is an independent predictor for malignancy: a comparative study with proliferating-cell nuclear antigen and progesterone receptor protein immunostaining, mitotic index, and other clinicopathologic variables. Hum Pathol. 1996; 27:1124-34. DOI
  56. Agaimy A, Erlenbach-Wünsch K, Konukiewitz B. ISL1 expression is not restricted to pancreatic well-differentiated neuroendocrine neoplasms, but is also commonly found in well and poorly differentiated neuroendocrine neoplasms of extrapancreatic origin. Mod Pathol. 2013; 26:995-1003. DOI
  57. Uccella S, Sessa F, La Rosa S. Diagnostic approach to neuroendocrine neoplasms of the gastrointestinal tract and pancreas. Turk Patoloji Derg. 2015; 31:113-27. DOI | PubMed
  58. Scarpa A, Chang DK, Nones K. Whole-genome landscape of pancreatic neuroendocrine tumours. Nature. 2017; 543:65-71. DOI
  59. Marinoni I, Kurrer AS, Vassella E. Loss of DAXX and ATRX are associated with chromosome instability and reduced survival of patients with pancreatic neuroendocrine tumors. Gastroenterology. 2014; 146:453-460.e5. DOI
  60. La Rosa S, Sessa F, Capella C. Acinar cell carcinoma of the pancreas: overview of clinicopathologic features and insights into the molecular pathology. Front Med (Lausanne). 2015; 2:41. DOI | PubMed |
  61. La Rosa S, Bongiovanni M. Pancreatic solid pseudopapillary neoplasm: key pathologic and genetic features. Arch Pathol Lab Med. 2020. DOI | PubMed
