2015 World Health Organization Classification of lung tumors: new entities since the 2004 Classification

Pathology Unit, Azienda Unità Sanitaria Locale/IRCCS Reggio Emilia
Pathology Unit, Azienda Ospedaliera per l’Emergenza Cannizzaro Hospital, Catania, Italy
Pathology Unit, Azienda Ospedaliera per l’Emergenza Cannizzaro Hospital, Catania, Italy
Pathology Unit, Arcispedale S. Maria Nuova/IRCCS, Reggio Emilia, Italy
Pathology Unit, Morgagni-Pierantoni Hospital, Forlì, Italy
Pathology Unit, University Hospital of Pisa, Italy
Pathology Unit, Ospedale V. Cervello, Palermo, Italy
Pathology Unit, University and Hospital Trust, Verona, Italy
Pathology Unit, Sacro Cuore Don Calabria Hospital, Negrar, Verona, Italy
Department of Cardiothoracic and Vascular Sciences, University of Padova, Italy
Pathology Unit, Ospedali Riuniti of Ancona, Italy
Department of Oncology and Anatomic Pathology, Hospital Vincenzo Monaldi of Napoli, Italy
Department of Pathology, Policlinico di Cattinara, University of Trieste, Italy
Pathology Unit, Azienda USL Valle d’Aosta, Regional Hospital “Parini”, Aosta, Italy
Pathology Unit, IRCCS Casa Sollievo della Sofferenza, San Giovanni Rotondo, Foggia, Italy
NUT carcinoma Angiomatoid fibrous histiocytoma Myxoid sarcoma PEComatous tumors Epithelial-myoepithelial carcinoma

Abstract

In the last few years different new pulmonary neoplastic lesions have been recognised and some of them, namely NUT carcinoma, PEComatous tumors, pneumocytic adenomyoepithelioma, pulmonary myxoid sarcoma, myoepithelial tumors/carcinomas entered in the last 2015-WHO classification of lung tumors. In addition angiomatoid fibrous histiocytoma and ciliated muconodular papillary tumor have been morphologically and genetically characterized albeit not yet included in the 2015-WHO classification.
In the present paper we summarised the clinical, morphological, immunohistochemical and molecular features of these new entities. The knowledge of key histologic and molecular characteristics may help pathologists in achieving a correct diagnosis thus leading to an adequate therapeutic approach.

Introduction

The 2015 World Health Organization (WHO) Classification of Tumors of the Lung, Pleura, Thymus and Heart 1 introduces some new entities (Fig. 1) compared to those present in the 2004-WHO Classifications of Tumors of the Lung, Pleura, Thymus and Heart 2. More in detail:

  1. NUT carcinoma has been added under the chapter of “Other and unclassified carcinomas”;
  2. pneumocytic adenomyoepithelioma is described as a peculiar variant of epithelial-myoepithelial carcinoma;
  3. a group of PEComatous tumors including lymphangioleiomyomatosis, benign PEComa and malignant PEComa has been created;
  4. pulmonary myxoid sarcoma with EWSR1-CREB1 translocation has been added;
  5. the entities myoepithelioma and myoepithelial carcinomas have been recognized 1.

We summarized the key clinical, morphological, immunohistochemical and molecular features of these entities together with a description of angiomatoid fibrous histiocytoma and ciliated muconodular papillary tumor of the lung, two recently described neoplastic pulmonary lesion carrying distinct molecular alterations.

NUT Carcinoma

WHO-2015 CHAPTER OF “OTHER AND UNCLASSIFIED CARCINOMAS”

NUT carcinoma (NC) is an aggressive subtype of poorly differentiated carcinoma genetically defined by the presence of NUT gene rearrangement, t (15; 19) 3 4. Being already present in the thymus section of the 2004-WHO Classification, 2 it has been now recognised also in the lung section of the 2015-WHO as “NUT carcinoma1.

NC is a rare (1% of lung tumors 1, 3-4% of mediastinal/thymic carcinomas) 2 highly aggressive tumor affecting children and young adults (< 30 years) of both genders 3, although cases of elderly patients (up to 78 years) are also on record 5. NC commonly involves the midline, supradiaphragmatic structures (nasal cavity, paranasal sinuses, mediastinum and thymus), however it may be found outside the midline including lung, parotid gland, bladder, pancreas, kidney and adrenal glands 3-5. NC is an extremely aggressive tumor with a fulminant and lethal clinical course (median survival of 6.9 months). Haematogenous and lymphatic spread are common leading to early bone metastases and multiorgan dissemination of disease (ovaries, liver, and brain) 5. No specific chemotherapeutic regimen has demonstrated efficacy in treating NUT carcinoma 4.

NC of the lung usually presents with symptoms related to the advanced stage and rapid onset of disease including cough, pleuritic chest pain, shortness of breath and weight loss 1 6-8. Ipsilateral pleural disease is consistently present with pleural effusion and partial or complete opacification of the hemithorax occurring within 2-8 weeks from initial presentation 9 10. NC and secondary sites of tumors are characteristically intensely (18)F-fluorodeoxyglucose (FDG)-avid (standardized uptake value (SUV) max > 10), thus PET-CT is the modality of choice to determine disease burden and is also helpful in monitoring response to treatment 1 9 10. NC often presents as an advanced-stage, inoperable disease 4 5. The sporadic surgically resected NC is a brown and white mass with central necrotic foci extending into hilar structures of the lung 11.

On cytology, NC has not distinctive features besides the typical aspects of undifferentiated carcinoma. Cytologic smears are highly cellular and enclosing loosely cohesive and/or isolated cells of intermediate size (2-2.5 times greater the diameter of a small lymphocyte) with irregular nuclear contours and one or more prominent nucleoli. The cytoplasm varies from pale to densely eosinophilic and may be vacuolated. Necrotic background, crush artefacts and mitotic figure are constant. A clear-cut squamous cell differentiation is not always visible, however the identification of overt pearl formation, dyskeratocytes or intercellular desmosomes in the context of cytological features suggestive of a poorly differentiated carcinoma, strongly suggest a diagnosis of NC 12. Histologically, NC shows sheets and nests of small-to-intermediate sized undifferentiated cells with a monomorphic appearance. Tumor cells have round-to-oval nuclei with irregular outlines and conspicuous nucleoli. The cytoplasm varies from clear, eosinophilic to basophilic and there is always brisk mitotic activity and necrosis. The key pathologic feature is the presence of neoplastic cells with overt squamous differentiation (squamous pearls, desmosomes, orangiophilic cytoplasm) with abrupt transition from the poorly differentiated area. An acute, neutrophilic granulocytes-based inflammatory infiltrates is frequent 1 6-10. At immunohistochemistry (IHC), NC is consistently positive for NUT with a clear-cut strong and diffuse nuclear immunoreactivity. Because NUT expression is restricted to testis and ovary, immunohistochemical stain for NUT (specific rabbit monoclonal antibody, clone C52) is a useful diagnostic tool in NC with 100% of specificity and 87% of sensitivity 1 13. In addition, most cases (> 90%), show nuclear staining with p63/p40 indicating squamous cell differentiation. 1 Occasional staining with CD56, synaptophysin, CD99, CK5/6, epithelial membrane antigen (EMA), FLI1 and even TTF-1 are reported 14. A potential immunohistochemical pitfall is the positivity for CD34, often found in NC, which may lead to a misdiagnosis of acute leukemia. Germ cell, lymphoid and myeloid markers are negative 1 14. NC is characterized by the t (15; 19) translocation, leading to the fusion of NUT gene to BRD4 in > 70% of cases. Molecular demonstration of NUT rearrangement either by fluorescence in situ hybridization (FISH), reverse transcriptase-polymerase chain reaction (RT-PCR) or direct sequencing is diagnostic of NC 1 3 4. Differential diagnosis includes any poorly differentiated malignant neoplasms (small cell lung cancer (SCLC), poorly differentiated non-small cell lung cancer (NSCLC), undifferentiated or squamous cell thymic carcinomas, round cell sarcomas, high grade lymphomas or leukemia), as a consequence the general recommendation is to test NUT expression by IHC in all poorly differentiated carcinoma lacking glandular differentiation 1 4. In addition every young and never-smoking patient with a diagnosis of SCLC should be tested for NUT, since 25% may represent truly a NC 15. For practical purpose, it might be useful to underline that none of the other histotype of lung cancer (adenocarcinoma (ADC), squamous cell carcinoma (SCC), SCLC, large cell carcinoma (LCC) and carcinoid tumors) disclose any NUT expression at IHC 16. Because of the rarity of NC in the lung, the standard therapeutic approach is a moot point. Recently, two ongoing trials investigating small-molecule BET inhibitors targeting BRD4, showed rapid impressive response with temporary regression of disease, but the disease invariably progressed after a relatively short interruptions (11-5 months) suggesting a development of a secondary resistance mechanisms 17.

KEY PATHOLOGIC FEATURES OF NUT MIDLINE CARCINOMAS

  1. Typically centrally located and often contiguous to bronchial epithelium (Fig. 2);
  2. sheets and nests of small blue undifferentiated cells with abrupt transition to large eosinophilic squamous cells (Fig. 3);
  3. foci of keratinization and desmosomes (Fig. 4);
  4. positivity for squamous markers: p63/p40;
  5. diagnostic nuclear positivity (> 50% of tumor cells) with the specific monoclonal NUT antibody (Fig. 5).

Pneumocytic adenomyoepithelioma

WHO-2015 CHAPTER OF “SALIVARY GLAND-TYPE TUMORS”/”EPITHELIAL-MYOEPITHELIAL CARCINOMA”

Pneumocytic adenomyoepithelioma (PAME) is a distinctive subtype of pulmonary low-grade tumor showing epithelial and myoepithelial differentiation with further pneumocytic specialization 18 19 Since the biphasic morphology and the absence of chondroid or myxochondroid matrix, it is considered as part of the “Epithelial-myoepithelial carcinoma” entity in the last WHO-Classification 1. PAME affects adults, with a mean age of 51 (range, 52-74 years) and a strong female prevalence 18. Only one case referred to a man has been described 19. Usually the detection of PAME is incidental, but a case with chest pain and shortness of breath has been reported. On chest CT, PAME is a peripherally located, well-circumscribed mass without calcifications or association with bronchi or vessels. On macroscopic examination, PAME is a solid tan-withe lesion, measuring from 0.8 to 2.6 cm (mean, 1.5 cm) with an homogenous fascicular cut surface. At histology PAME exhibits epithelial and myoepithelial cells mainly arranged in double-layered glandular structures. The epithelial cells are cuboidal or columnar forming duct-like, tubular or glandular structures surrounded by myoepithelial cells with frequently clear cytoplasm. Glands are usually filled by dense, eosinophilic colloid-like secretions, which is a key pathologic feature of PAME. Myoepithelial cells sometimes are arranged in solid sheets of spindle-shaped cells with abundant eosinophilic cytoplasm. Although a mild nuclear atypia is acceptable, usually cellular pleomorphism, necrosis and high mitotic rate are absent and Ki-67 is < 5%. Chondroid or myxochondroid matrix is always absent. Immunohistochemistry highlights the double cells component showing immunoreactivity for cytokeratin (CK), EMA, surfactant A and TTF-1 in the epithelial component and positivity for smooth muscle actin (SMA), S100, p63 and calponin in myoepithelial spindle cells. Differential diagnosis mainly includes pulmonary pleomorphic adenoma (chondromyxoid stroma, cartilage formation and bronchocentric location), epithelial-myoepithelial carcinoma (lack of pneumocytic differentiation, TTF-1- and surfactant A-), sclerosing pneumocytoma (papillary, solid, hemorragic and sclerotic pattern of growth; CK +, EMA +, surfactant A + and TTF-1 + of surface type cells and TTF-1 +, EMA + and CK -, surfactant A - of round stromal cells are), mucus gland adenoma (central localization, mucin-filled cysts lined by columnar mucus secreting cells, absence of spindle cell component), neuroendocrine tumors (neuroendocrine (NE) makers +) and metastatic papillary thyroid (thyroglobulin +) and salivary-gland carcinomas (absence of pneumocytic differentiation and clinical/instrumental correlation). PAME has a benign clinical outcome once surgically resected 18.

KEY PATHOLOGIC FEATURES OF PNEUMOCYTIC ADENOMYOEPITHELIOMA

  1. Well-circumscribed, biphasic neoplasm with epithelial, myoepithelial and pneumocytic differentiation;
  2. glands filled with colloid-like secretions (Fig. 7), composed of an inner cuboidal epithelial layer surrounded by an outer myoepithelial one merging with foci of spindle cells (Fig. 8);
  3. expression of CK, EMA, TTF-1 and surfactant A in epithelial cells and S100, SMA, calponin, caldesmon and p63 reactivity in myoepithelial cells (Fig. 9).

PEComatous tumors: lymphangioleiomyomatosis, beningn PEComa, clear cell tumor and malignant PEComa

WHO-2015 CHAPTER OF “MESENCHYMAL TUMORS”/”PECOMATOUS TUMORS”

Perivascular epithelioid cell tumors (PEComa) are mesenchymal neoplasms composed of distinctive epithelioid and/or spindle cells, which are immunoreactive for both smooth muscle and melanocytic markers. The chapter “PEComatous tumors” of the last WHO classification of lung tumours includes different entities namely lymphangioleiomyomatosis (LAM), benign PEComa including clear cell tumor and malignant PEComa 1. The last one is a new entry into the WHO Classifications of tumours since the other entities were already listed under the paragraphs of “Mesenchymal tumors” (LAM) and “Miscellaneous tumors” (clear cell tumor/ benign PEComa) in the 2004-WHO Classification 2.

PEComatous tumors are supposed to arise from perivascular epithelioid cells and in the lung they may manifest as:

  1. diffuse cystic interstitial lung disease termed LAM 20;
  2. a benign localized neoplasm called PEComa, of which clear cell “sugar” tumor is the more frequent variant 21 25;
  3. a malignant PEComatous mass 26 27;
  4. or a diffuse proliferation with overlapping features between LAM and clear cell tumor 28.

LAM is a well-known and studied condition in the lung. It may be sporadic or tuberous sclerosis (TS)-related disorder occurring almost exclusively in women. Previously considered a non-neoplastic interstitial lung disease, LAM has been recognised as a low-grade mesenchymal metastasizing neoplasm either in the 2004 2 and 2015 1 Classifications because of the recognition of clonal origin, growth-promoting DNA mutation and aggressive behaviour (invasive and metastatic potential, recurrence after transplant). LAM shows usual biallelic mutations of TSC2 resulting in abnormal signalling of the mTOR pathway. Dyspnoea, pneumothorax and chylous effusion are common manifestations of LAM and about 60% of patients show elevated serum levels of VEGF-D. Thoracic CT presents thin-walled cysts secondary to a multifocal proliferation of peculiar plum spindle-shaped myoid cells, which show co-expression of melanocytic and muscle markers at immunohistochemistry (HMB45 +, Melan A +, Mart-1 +, MiTF + SMA +). Treatment strategies include lung transplantation and treatment with mTOR inhibitors 1 20.

PEComas of the lung encompass different lesions including clear cell “sugar” tumor, angiomyolipoma, benign and malignant PEComa. PEComa affects adults with a wide age range (8-73 years, mean age of 57), showing a predominant incidence in middle-age and elderly people and a slight male predominance 1 21 22. No relationship with smoking history has been identified. Opposite to LAM, PEComatous tumor are rarely associated with TS, with a more striking association between the rare angiomyolipoma of the lung and TS 23 23. Usually PEComas are asymptomatic and incidentally detected, but some patients experience symptoms such as headaches, weakeness, cough, blood sputum, chest pain, thrombocytosis or unexplained fever 1 21-24 26 27. Imaging features of PEComa can be distinctive. Clear cell sugar tumor of the lung appears on thoracic CT scan as a “coin lesion” 21 22, whereas angiomyolipoma is characterized by heterogeneous enhancement with areas of fat attenuation 24. Malignant PEComa shows areas of necrosis, haemorrhage and/or cystic changes at imaging with an extensive uptake of FDG by PET-CT 26. Macroscopic examination of these entities parallel the imaging findings since clear cell tumors reveal a well-demarcated nodule with homogenous red-tan cut surface (0.1-15 cm), 21 22 angiomyolipomas (1.5-9.5 cm) usually show yellow-fatty and fascicular areas in a well-defined nodule 24 and malignant PEComa shows cystic changes and necrotic or haemorrhagic areas of an ill-defined mass, by definition > 5 cm 26 27. Histologically clear cell tumor is composed of sheets and cords of polygonal and occasionally spindled cells, with distinct cell borders and clear, granular or eosinophilic cytoplasm, arranged around numerous hyalinazed, or “stag’s horn”, thin-walled vessels. Pleomorphism and nucleoli may be prominent, but mitoses are usually absent. Due to the glycogen-rich cytoplasm there is strong PAS positivity, sensitive to diastase 1 21-23. Cases of a diffuse interstitial growth of clear cells, showing features overlapping between LAM and clear cell tumor have been rarely described as diffuse PEComatosis 1 28. Malignant PEComa has to display 2 or more of the following features: large size (> 5 cm), infiltrative growth, high nuclear grade, hypercellularity, mitoses > 1/50 HPF, necrosis or vascular invasion 25.

Angiomyolipoma, rarely occurs in the lung and as well as its renal counterpart, is composed of thick-walled vessels, sheets of smooth muscle spindle cells and mature adipose component in variable proportion 24.

PEComatous tumors are caracterized by a distinctive immunophenotype with a co-expression of both myogenic (SMA, calponin, caldesmon and desmin) and melanocytic markers (HMB45, Melan A, tyrosinase, MiTF) with spindled features associated with a stronger expression of SMA and epithelioid morphology with a stronger expression of HMB45. Although a third of PEComa shows a focal expression of S100, the most sensitive marker for its diagnosis is HMB45 (80%), with a granular cytoplasmic pattern of positivity. CK positivity is occasionally seen 1 21-27.

Nuclear expression of TFE3 is also present in a distinct subgroup of PEComa with TFE3 rearrangement, extrarenal onset, young age, absence of TS, minimal immunoreactivity for muscle markers and frequent melanin pigmentation 27 29. The development of PEComatous tumors, including LAM, is related to inactivating mutations of TSC1 or TSC2 either sporadic or in the context of TS. TSC mutations lead to dysregulation in mTOR signalling pathway, a potential therapeutic target possibly highlight by IHC for mTOR 1 20 23. Instead, a distinctive subgroup of PEComas, harbour TFE3 gene rearrangements leading to TFE3 immunopositivity 29. Differential diagnosis include metastatic renal cell carcinoma (CK +, PAX8 +, CD10 +), granular cell tumor (S100 +), metastatic melanoma and clear cell sarcoma (clinical correlates and overtly malignant features) for clear cell tumor 1 21-23. Angiomyolipoma has to be differentiated from hamartoma (lobulated architecture and frequent presence of cartilaginous tissue), well-differentiated liposarcoma (MDM2 +, CDK4 +) and benign metastasizing leyomioma (estrogen receptor (ER) +, progesterone receptor (PR) +, absence of fat). Malignant PEComa may pose a challenging differential diagnosis with metastatic or primary melanoma of the lung, in such cases TFE3 positivity, if present, may be helpful together with clinical and instrumental examination 27. Surgery is the best therapeutic approach for PEComatous tumors of the lung, apart from LAM 1. Recent therapeutic choices for LAM include mTOR inhibitor, everolimus and sirolimus, as valid alternative to lung transplantation 1 20. Also a case of diffuse PEComatosis of the lung has been successfully treated with sirolimus 28.

KEY PATHOLOGIC FEATURES OF PECOMATOUS TUMORS

  1. LAM (sporadic or TS-related): cystic interstitial lung disease at CT-scan of females;
  2. multiple thin-walled cysts showing nodular or diffuse proliferation of spindle myoid cells in the walls (Fig. 10);
  3. benign PEComa, clear cell “sugar” tumor: small peripheral nodule composed of rounded to oval cells with distinct cell borders, clear granular PAS + cytoplasm and prominent vascularization (Fig. 11);
  4. benign PEComa, angiomyolipoma: lesion constitutes of fat, smooth muscle and vessels in variable proportion (Fig. 12);
  5. malignant PEComa: large size (> 5 cm), infiltrative growth, high nuclear grade, hypercellularity, mitoses > 1/50 HPF, necrosis or vascular invasion (Fig. 13);
  6. combined positivity for melanocytic markers (HMB45) and muscle markers (SMA) is distinctive of PEComatous tumors.

Pulmonary myxoid sarcoma with EWSR1-CREB1 translocation

WHO-2015 CHAPTER OF “MESENCHYMAL TUMORS”

Primary pulmonary myxoid sarcoma (PMS) is a low-grade malignant, recently recognized tumor, usually arising in the central airways and carrying the EWSR1-CREB1 fusion gene 1 31 32. This new entity of the 2015-WHO Classification 1 encompasses cases previously described as “malignant myxoid endobronchial tumor33 and cases already reported as “primary pulmonary extraskelatal myxoid chondrosarcoma34. PMS affects patients with a wide age range (27-67 years, mean 45.5), showing a slight female predominance (M:F, 1:1.4). Most patients are smokers presenting with cough, haemoptysis and obstructive pneumonia due to the endobronchial site of tumor 1 31 33. Slight anemia (a constant symptom in the last series and in cases previously reported as “primary pulmonary extraskeletal myxoid chondrosarcoma”) 34 together with fever, weight loss and symptoms related to metastases may be also detected 1 31-33. PMS is nearly always (> 80%) near to or arising within a bronchus. On Chest CT a polycyclic bronchocentric “coin lesion”, eventually associated with obstructive signs is usually detected 1 31-34. However, peripheral PMSs have been also described 31-32 34. Grossly, PMS is a well-circumscribed tumor, measuring 1.5 cm to 13 cm (usually < 4 cm) with a glistering or gelatinous cut surface, ranging from white-grey to yellow in colour. Microscopic findings reveal a characteristic lobulated architecture and a fibrous pseudocapsule showing a prominent inflammatory infiltrates with lymphoid aggregates. PMS is composed of spindle and stellate-to-polygonal cells within a prominent myxoid stroma, often lightly basophilic, displaying a reticular network with delicate lace-like strands and cords. More solid areas could also be detected and occasionally represent the predominant pattern. Cellular atypia is variable, ranging from absent to moderate in the vast majority of tumors, with occasional cases showing marked atypia. Mitotic index is also variable, with fewer than 5 mitoses/10 HPF usually detected. Necrosis, typically focal, is present in 50% of neoplasms. No chondroid differentiation or lipoblasts have to be seen. Focal hemosiderin deposition may be observed 1 31-34. Ultrastructural features may suggest a possible fibroblastic or myofibroblastic origin of PMS tumor cells 35. Neoplasitc cells lack specific immunohistochemical phenotype: expression of vimentin and weak and focal staining for EMA is reported in 60% of cases. Negativity for S100, CK, CD34, SMA, desmin and NE markers is a usual feature. CD68 may reveal the coexistence of histiocytes. The negativity for desmin may help in the differential diagnosis with angiomatoid fibrous histiocytoma (AFH). Histochemistry with Alcian blue stains the myxoid stroma, but is sensitive to treatment with hyaluronidase. Tumor cells may show cytoplasmic reactivity to periodic-acid Schiff (PAS) 1 31-33. The great majority of PMS harbors a specific EWSR1-CREB1 fusion by RT-PCR and by direct sequencing and/or EWSR1 rearrangements by FISH 1 31 32 35 36. The characteristic fusion transcripts EWSR1-NR4A3 and TAF15-NR4A3, detected in extraskeletal myxoid chondrosarcoma, are never detected in PMS. The main differential diagnosis includes extraskeletal myxoid chondrosarcoma, which is morphologically very similar, but carry the diagnostic recurrent chromosomal translocation that fuse NR4A3 with variable partners, particularly NR4A3-EWSR1 and NR4A3-TAF15 34 36. Other differentials includes epithelial-myoepithelial carcinoma (CK + in the epithelial and myoepithelial markers + in the spindle cell components, respectively), metastatic parachordoma (CK +, S100 +), pulmonary myxoma, myxoid liposarcoma (presence of lipoblasts and t(12; 16) (q13; p11) resulting in DDIT3-FUS fusion gene), aggressive angiomyxoma (desmin +, SMA +, ER +, PR +) 37, microcystic fibromyxoma (microcystic pattern of growth) 38 and other metastatic myxoid sarcoma (obvious features of malignancy: increased cellularity, nuclear atypia, hyperchromasia and high mitotic activity). AFH of the lung is also a possible differential diagnosis, since PMS and AFH share the same EWSR1-CREB1 fusion and may display morphological overlap 1 36. Surgical resection represents the treatment of choice for PMS that usually shows a benign course of disease. However, just three reported cases are associated with brain, kidney and lung metastases, respectively. No histological prognostic features were detected at yet 1 31-33. In dealing with a myxoid sarcoma of the lung, a meticulous exclusion of a possible source of metastases is mandatory; once excluded such eventuality, the possibility of primary PMS may be supported by the specific and pathognomonic EWSR1-CREB1 rearrangements.

KEY PATHOLOGIC FEATURES OF PULMONARY MYXOID SARCOMA WITH EWSR1-CREB1 TRANSLOCATION

  1. Typically centrally located and often contiguous to bronchial epithelium with a lobulated architecture (Fig. 14);
  2. spindle, stellate and polygonal cells with lace-like or reticular architecture and prominent myxoid stroma morphologically similar to extraskelatal myxoid chondrosarcoma (Fig. 15);
  3. focal necrosis in about half of tumors, usually low mitotic activity (< 5 mitosis/HPF);
  4. absence of chondroid and fatty differentiation;
  5. expression of vimentin and weak, focal staining for EMA in 60% of tumors;
  6. myxoid stroma positive for Alcian blue, sensitive to treatment with hyaluronidase;
  7. FISH detection of EWSR1 rearrangements and/or RT-PCR demonstration of EWSR1-CREB1 fusion transcripts.

Myoepithelial tumors/myoepithelial carcinoma

WHO-2015 CHAPTER OF “MESENCHYMAL TUMORS”

Myoepithelial tumor (myoepithelioma) and myoepithelial carcinoma of the lung are neoplasm histologically analogous to those arising in salivary glands, breast and soft tissue 1. Primary myoepithelial tumor/carcinoma (MTC) of the lung are extremely rare neoplasms showing a predominant or exclusive myoepithelial differentiation 1 39-46. The last WHO Classification enclosed MTC as a newly separate entity differentiating it from epithelial-myoepithelial carcinoma and pleomorphic adenoma in consideration of the lack of ductal/glandular component. 1 Primary pulmonary myoepithelial lesions are thought to arise from submucosal bronchial glands of the lower respiratory tract 43 and recently EWSR1 rearrangements have been identified as possible molecular alteration in MTC 36. MTC in the lung is a rare neoplasm occurring in adults with a wide age range (18-76 years) with most benign cases affecting females and most malignant cases affecting males. The majority of patients (71%) have a smoking history. Symptoms of airway obstruction (cough, dyspnoea) or blood sputum may be present in patient with endobronchial or endotracheal lesions 1 39-46. Chest pain and respiratory distress characterize the rare mediastinal location of MTC 42. Patients with peripheral tumors may be asymptomatic 39-41. MTC can arise as endobronchial central mass or as a peripheral nodule. Thoracic CT can evidence circumscribed nodule, spiculated mass or nodular shadow with irregular margins 40 45. MT is negative at PET-CT 40, whereas MC can be hypermetabolic 46. Gross examination usually reveals a well-circumscribed mass ranging from 1.5 to 20 cm, with a yellow-tan, sometimes glistering cut surface 1 39-41. Invasive growth, necrosis and haemorrhage may be present in MC 43-46. Microscopic examination reveal a lobulated, multinodular neoplasm composed of cords and nests of epithelioid, spindle, clear and plamacytoid cells with a variable reticular architecture and a myxoid, chondromyxoid or collagenous/hyalinised stroma 1 39-46. The absence of ductal differentiation, distinguishes MTC from epithelial-myoepithelial carcinoma and pleomorphic adenoma 1. Neoplastic cells are variably epithelioid (round-to-polygonal with abundant eosinophilic cytoplasm), spindled (short-to-elongated with eosinophilic-to-clear cytoplasm and tapered nuclei), plasmacytoid (plump with abundant eccentrically placed hyaline cytoplasmic inclusions) or clear 1 39-46. Helpful criteria to differentiate benign MT from malignant MC include high mitotic rate (mean 13/10 HPF), necrosis, nuclear atypia with hyperchromasia, multinucleation and prominent nucleoli 43-46. MTC consistently express epithelial markers (CK, EMA) and is also immunoreactive for at least one myoepithelial marker (S100, calponin, SMA, glial fibrillary acid protein (GFAP), caldesmon, p63). Desmin and CD34 are usually negative. Genetically, MTC are often characterized by EWSR1 gene rearrangements with a variety of different fusion partners including ZNF444 in a MC with clear cell and FUS in a MC with spindle cell morphology. However, the majority of MTC lack an identifiable fusion partner at yet 1. The differential diagnosis include other salivary gland-type tumors of lung such as pleomorphic adenoma/mixed tumor (presence of glandular/ductal component in a chondromyxoid stroma, lack of EWSR1 rearrangements), epithelial-myoepithelial carcinoma (presence of ductal component, lack of EWSR1 rearrangements), adenoid cystic carcinoma (biphasic neoplasm composed of epithelial and myoepithelial cells with cribriform pattern of growth, CD117 +) and metastatic lesions from salivary glands, breast or soft tissue (clinical, anemnestical and radiological correlations, multiple lung nodules) 1 39 43 46. When benign, localized to the lung and completely surgically resected, MT is cured 39-41. MC can metastasize to liver, brain, contralateral lung and soft tissue, but rarely show lymphnode dissemination 1 43-46. Once excluded the hypothesis of metastases, the possibility of primary MTC may be advanced and also supported by EWSR1 rearrangements.

KEY PATHOLOGIC FEATURES OF MYOEPITHELIAL TUMORS/MYOEPITHELIAL CARCINOMA

  1. Typically centrally located with most benign cases (MT) occurring in females and most malignant cases (MC) occurring in males;
  2. multinodular, lobulated architecture (Fig. 17A) and a spectrum of trabecular, reticular or solid pattern of growth with variably myxoid, chondromyxoid or collagenous/hyalinized stroma;
  3. epithelioid (Fig. 17B), spindled (Fig. 17C), plasmacytoid (Fig. 17D) or clear (Fig. 17B) tumoral cells;
  4. malignant features defining MC are: necrosis (Fig. 18E), high mitotic rate (Fig. 18F) and/or nuclear atypia (multinucleated cells, hyperchromatic nuclei, prominent nucleoli) (Fig. 18G);
  5. positivity for CK, S100, GFAP and calponin (SMA and p63 may also be positive);
  6. negativity for desmin and CD34;
  7. frequent EWSR1 rearrangements.

Angiomatoid fibrous histiocytoma

NOT YET RECEIVED A WHO CLASSIFICATION

Angiomatoid fibrous histiocytoma (AFH) is an uncommon soft tissue neoplasm of intermediate (borderline) malignancy and uncertain histogenesis, rarely affecting the lung 47-50. Primary AFH of the lung affects adults with a mean age of 53 (range 28-70 years) with a slight male prevalence (M:F, 2.5:1). Symptoms are nonspecific and some AFH are incidentally detected. At chest CT, lung AFH appears as a peripherally-located, well-demarcated, homogeneous parenchymal mass with moderate PET uptake. Grossly, AFH is a solid, red, yellow-tan or white mass, measuring from 1.5 to 8.5 cm (mean, 2.7 cm) 47 48. Endobronchial cases have been described 49 and cut-surface may reveal blood-filled cystic spaces. Histologically, AFH shows four key morphologic features in varying proportions:

  1. multinodular pattern of growth of short spindled myoid cells or ovoid histiocyte-like cells with a distinctive syncytial growth;
  2. pseudoangiomatous spaces filled with extravasated erythrocytes and foci of haemorrhage forming large blood-filled spaces lined by flattened tumor cells rather than endothelial cells;
  3. thick incomplete fibrous pseudocapsule and intratumoral fibrous septa leading to a lobulated appearance at low-power magnification;
  4. pericapsular cuffing of lymphoplasmacytic cells with occasional germinal centres, mimicking a lymph node infiltrated by a metastatic tumor 47-50.

The main diagnostic clue of AFH is represented by peritumoral shells of lymphocytes and plasma cells.

The neoplastic population consists of uniform, bland, spindly, oval or mixed spindly and oval cells with abundant palely eosinophilic cytoplasm and indistinct cell borders forming sheets and nodular aggregates sometimes showing whorled or storiform growth pattern. Cellular pleomorphism, mitotic activity, hyperchromatic giant cells, myxoid stroma, and a small blue-cell phenotype may be observed 48. At IHC, about half of cases express desmin and EMA. SMA is positive in 40% and myogenin, CK, S100, CD34 and follicular dendritic cell markers (CD21, CD23, CD35, D2-40, clusterin) are negative. A non-specific staining with CD99, CD68 and CD163 was also detected 47-50. In about 75% of AFHs the characteristic chromosomal translocations t(2; 22) EWSR1-CREB1 is observed. In a subset of AFHs chromosomal rearrangements resulting in the EWSR1-ATF1, and FUS-ATF1 gene fusions have been described 51.

EWSR1-ATF1 or EWSR1-CREB1 gene fusion also characterize clear cell sarcoma, hyalinizing clear cell sarcoma of the salivary gland, myoepithelial tumor of soft tissue (EWSR1-ATF1) and pulmonary myxoid sarcoma 36 51.

Differential diagnosis mainly includes inflammatory myofibroblastic tumor (SMA +, ALK +/-), follicular dendritic cell sarcoma (CD21+, CD23+ and/or CD35+), spindle-cell sarcomatoid carcinoma (CK +) and Kaposi’s sarcoma (HHV8+) 1 47.

Once completely resected, pulmonary AFH shows a benign clinical behavior, even if metastasis to the kidney and the brain has been recently reported 50.

KEY PATHOLOGIC FEATURES OF ANGIOMATOID FIBROUS HISTIOCYTOMA

  1. Multinodular pattern of growth of spindle myoid and histiocytoid cells (Fig. 20);
  2. peripheral thick fibrous pseudocapsule with prominent hemosiderin deposits and pericapsular cuffing of lymphoplasmacytic cells (Fig. 21);
  3. pseudoangiomatous spaces filled with blood and surrounded by tumoral cells (Fig. 22);
  4. positivity for desmin and EMA in 50% of cases (Fig. 23).

Ciliated muconodular papillary tumor of the lung

NOT YET RECEIVED A WHO CLASSIFICATION

Ciliated Muconodular Papillary Tumor of the Lung (CMPT) is a low-grade malignant tumor with ciliated, goblet and basal cells, typically presenting as a peripheral lung nodule in adults 53-60. CMPT is not yet included in the WHO Classification, but its peculiar morphology and molecular characterization might recognize it as a distinct new lung entity in the very next future 54-57. CMPT is a rare low-grade, peripheral pulmonary tumor showing a benign course after complete surgical resection. CMPT affects adults with a wide age range (19-83 years), but mainly occurs in elderly (> 60 years), smoker patients. CMPT affects patients of both genders, with a female predominance. Usually CMPT is asymptomatic and incidentally detected during follow-up or staging for different malignancy. Imaging features of CMPT are variable: well-circumscribed nodules, mass with irregular margins or cystic cavitations, ground-glass opacities, with a constant peripheral location. PET-CT can either show a slight-to-moderately increased uptake of FDG or be completely negative 55 57.

Grossly, CMPT is a small nodule (0.8 to 4.5 cm, usually < 1.5 cm) white-to gray in colour, with a gelatinous cut surface 57. Endobronchial growth has not been reported. Histologically, CMPT display a papillary and glandular architecture with cystic change. There is abundant extracellular mucin surrounding the tumor and within cystic spaces. A tripartite cellular component is pathognomonic and characterized by:

  1. ciliated columnar epithelial cells;
  2. mucinous goblet cells;
  3. and basal cells.

The outer layer of papillae shows an admixture of ciliated and goblet cells and the inner one consists of a continuous layer of basal cells. The key diagnostic pathologic feature, also helping in differentials, is the presence of ciliated columnar cells 53 56 57 59. Nuclear atypia, mitoses and necrosis are not observed. At IHC, CMPT is reactive for TTF-1 and CK7 in all the three cellular component. CEA shows a patchy positivity. CK20 is always negative. Recent molecular studies have identified BRAF V600E mutations in 40%, exon 19 deletions of EGFR in 30%, PTPN11 in 20% of CMPT and other sporadic mutations (AKT E17K, BRAF G606R, CTNNB1, IDH1 and TP53) were detected. CMPT harbouring V600E BRAF mutation might also show cytoplasmic positivity for BRAF (clone VE1) at IHC 60. Differential diagnosis may be challenging on small biopsies or frozen section 55 56. However, the recognition of a ciliated cellular population in a small peripheral lung nodule, should suggest a conservative surgical approach by wedge resection with free margins rather than lobectomy. Several benign, low-grade and malignant entities enter in the differential diagnosis of CMPT, as well as the peribronchiolar metaplasia (lack of goblet cells, mucin pools and of a distinctive nodule at imaging), mixed squamous and glandular papilloma (similar morphology, but central, endobronchial location), primary or metastatic mucoepidermoid carcinoma (primary: centrally located, metastatic: multiple nodules, overt atypia, absence of ciliated cells), invasive mucinous ADC (lack of cilia with the exception of rare and debatable entity such as: “mucinous adenocarcinoma with cilia formation” or “well-differntiated papillary adenocarcinoma with cilia formation” that possibly represent CMPT, absence of the tripartite components, evident nuclear atypia and mitotic activity) 1 53-60. Awareness of the existence of CMPT is of paramount importance in order to do not mistake this low-grade lesion with malignant invasive ADC, which require aggressive surgical approach 55 56.

KEY PATHOLOGIC FEATURES OF CILIATED MUCONODULAR PAPILLARY TUMOR OF THE LUNG

  1. Peripherally located;
  2. variable imaging features on CT: well-circumscribed nodules (Fig. 24), nodules with irregular margins or ground glass opacities;
  3. papillary and/or glandular architecture with prominent surrounding alveolar mucin (Fig. 25A);
  4. papillae lined by a combination of mucinous cells resembling goblet cells and columnar cells with cilia;
  5. continuous basal inner layer immunoreactive for p63/p40 and CK 5/6;
  6. variable positivity for TTF-1, CK7 and CEA in all tumoral cell populations;
  7. negativity for CK20;
  8. 40% BRAF (V600E), 30% EGFR (del 19) mutated.

Conclusion

Pathologists have to be conscious about the existence of new rare entities recognized in the last WHO Classification of Tumors of the Lung 1, together with angiomatoid fibrous histiocytoma 47 and ciliated muconodular papillary tumor 57 not yet included into the 2015-WHO.

The knowledge of their peculiar morphological, immunohistochemical, molecular features is mandatory for pulmonary pathologists to achieve a correct and precise diagnosis leading to an adequate surgical and/or oncological approach.

Figures and tables

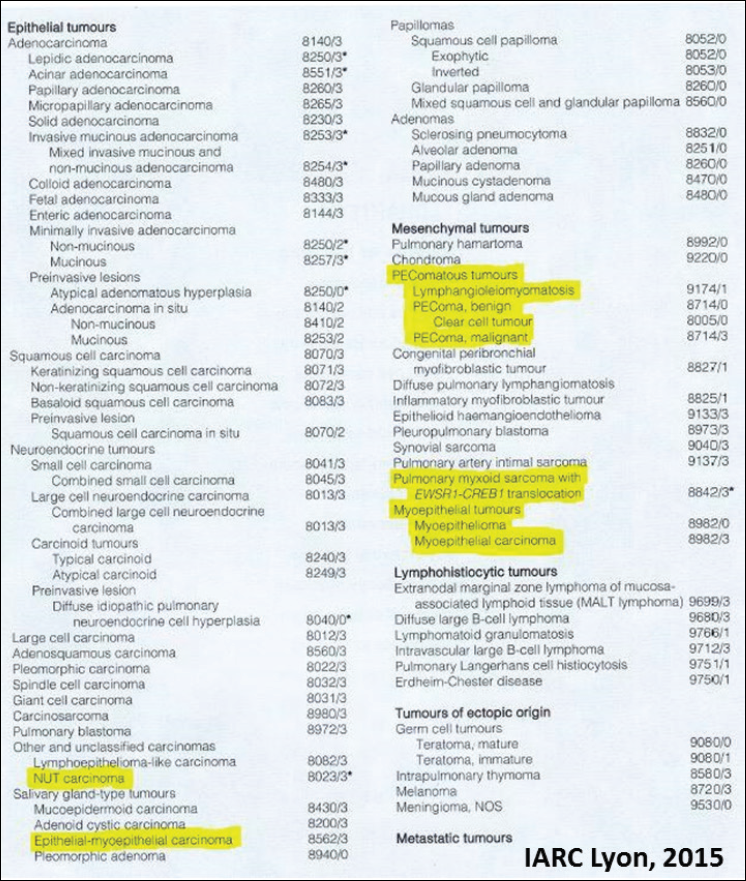

Fig. 1.New tumoral entities (marked with highlighter) of the last 2015-WHO Classification of tumors of the lung.

Fig. 2.Bronchial biopsy of NUT carcinoma (NC) with prominent inflammatory infiltrates of lymphocytes and neutrophilic granulocytes (A). NC contiguous to and infiltrating the hyperplastic bronchial mucosa, which shows reactive changes (B).

Fig. 3.Abrupt transition from squamous cell carcinoma to small blue undifferentiated carcinoma characterizes NC.

Fig. 4.Foci of keratinization represented by squamous pearls (C), intercellular bridges (D) and clear cell spaces between cells are typical of NC, which is basically a poorly differentiated squamous cell carcinoma carrying translocation of NUT gene.

Fig. 5.NC with the typical abrupt transition to small blue cell areas and large clear squamous cell sheets shows nuclear immunoreactivity (insert) for the specific NUT antibody.

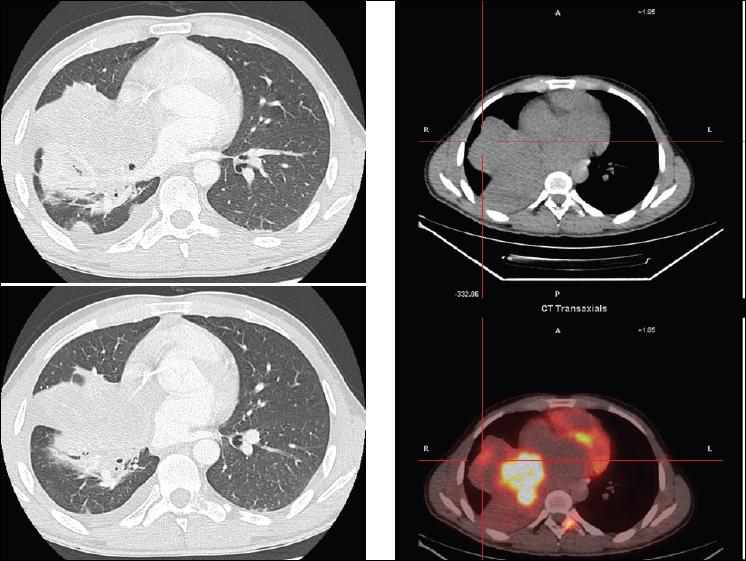

Fig. 6.Thoracic CT scans of a NC shows a central mass occluding the right main broncus and infiltrating the pulmonary vein, associated with atelectasis and pleural effusion. NC is also extremely avid of FDG at PET-CT (SUVmax = 20).

Fig. 7.Pneumocytic Adenomyoepithelioma (PAME) is a well-circumscribed neoplasm characterized by epithelial glands and myoepithelial spindle cells with characteristic double-layered structures containing colloid-like secretions.

Fig. 8.Peculiar morphologic features of PAME are: glands spaces with dense eosinophilic secretions (A), double-layered structures with outer myoepithelial layer characterizes by basement-membrane-like pink material (B) and spindle cells with abundant eosinophilic cytoplasm (C).

Fig. 9.PAME shows the outer layer of glands and spindle cells staining for SMA and the inner Iayer staining for CK and TTF-1 at IHC.

Fig. 10.Lymphangioleiomyomatosis (LAM). A cystic space is visible within lesional PEComatous cells form a nodule in the wall and diffusely infiltrate the edges of cystic spaces. High power (insert) show the pathognomonic myoid spindle-shaped cells with abundant eosinophilic and finely vacuolated cytoplasm

Fig. 11.Different morphologic features of clear cell “sugar” tumor of the lung are illustrated: the prominent vascularization of thin-walled hemangioperycitoma-like vessels (A, B), the interstitial pattern of growth defining: “diffuse PEComatosis” (C) and the clear epithelioid and spindled cells constituting the lesion (D).

Fig. 12.Angiomyolipomas is characterized by fat tissue with dispersed lipoblasts (E), prominent thick-walled vessels (F) and bundles of spindle eosinophilic muscle cells somewhat arranged around vessels (G).

Fig. 13.Malignant and pigmented PEComa of the lung is illustrated, showing prominent melanin deposition (H), atypical nuclear features with multinucleation, hyperchromatic nuclei (I), increased mitotic index with Ki-67/MIB-1 (J) and nuclear strong and diffuse positivity with TFE3 at IHC.

Fig. 14.Pulmonary myxoid sarcoma (PMS) near to a focus of peribronchiolar metaplasia with ciliated bronchiolar epithelium (A), shows the typical multilobulated pattern of growth within alveolar spaces (B).

Fig. 15.PMS displays the specific myxoid background in which sparse spindle, stellate and polygonal cells are arranged in a reticular network.

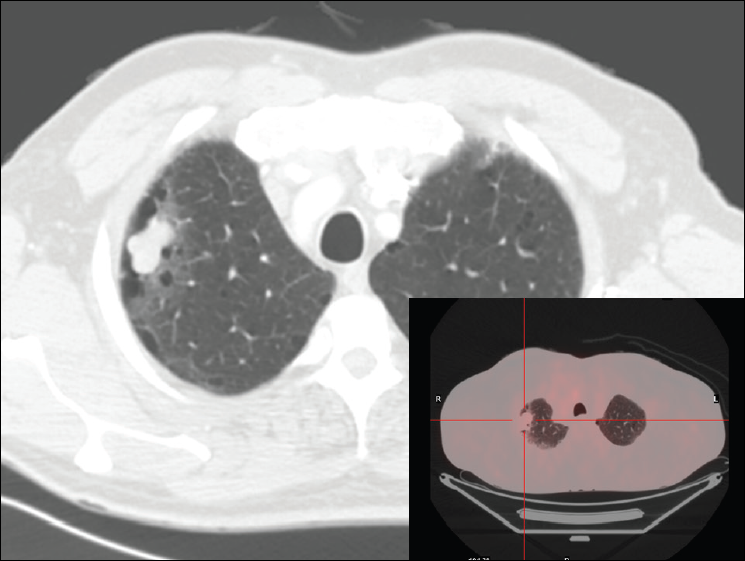

Fig. 16.Thoracic CT of a PMS shows a bilobated nodule of the right upper lobe with peripheral ground glass opacities likely due to the growth within alveolar spaces of the tumor, near to emphysematous bullae. PET-CT scan discloses a mild uptake of FDG. Although PMS are more frequently detected near the main bronchi, as centrally located nodules, rare cases manifest as peripheral lesion.

Fig. 17.Pulmonary myoepithelial tumor (MT) shows a lobulated architecture and interstitial pattern of growth (A). Epithelioid and clear (B), spindle (C) and plasmacytoid cells (D) variably characterize MT.

Fig. 18.The main pathological features defining myoepithelial carcinoma (MC) of the lung are necrosis (E), high mitotic rate (F) and nuclear atypia with multinucleated cells (G), hyperchromatic nuclei and prominent nucleoli.

Fig. 19.Most MT express cytokeratin and calponin and about one third are positive for p63.

Fig. 20.Angiomatoid Fibrous Histiocytoma (AFH) shows multinodular pattern of growth with fibrous septa and lymphoplasmacytic cuffing (A). Uniform, bland spindle myoid cells (B) and ovoid histiocytoid cells with abundant palely eosinophilic cytoplasm and indistinct cell borders, imparting a syncytial appearance (C), characterize the lesion.

Fig. 21.Thick fibrous hyaline pseudocapsule with hemosiderin deposition (D) and pericapsular aggregates of lymphocytes with abundant admixed plasma cells (E) are typical of AFH.

Fig. 22.Foci of intralesional haemorrhage are often present in the centre of the tumor, leading to a formation of large blood-filled spaces (F). Pseudoangiomatous spaces with extravasated red blood cells surrounded by tumor cells (G) are a key morphologic feature of AFH.

Fig. 23.AFH expresses both desmin with dendritic cell processes and EMA. The expression of EMA is usually of weaker quality than that of desmin.

Fig. 24.Chest CT of Ciliated Muconodular Papillary Tumor (CMPT) disclose a peripheral nodule with well defined margins. Different radiologic pattern of CMPT have been also described, including nodules with ill-defined/irregular margin, cystic/cavitated nodules, ground-glass opacities with a constant and peculiar peripheral location.

Fig. 25.CMPT of the lung shows a papillary pattern of growth with copious amounts of mucus (A). At higher magnification, the typical tripartite cellular component is visible: ciliated columnar cells and goblet cells lining the papillary structures and basal cells constituting the inner layer (B, C).

References

  1. Travis WD, Brambilla E, Burke AP. WHO classification of tumors of the lung, pleura, thymus and heart. IARC: Lyon; 2015.
  2. Travis WD, Brambilla E, Müller-Hermelink HK. Pathology and genetics: tumors of the lung, pleura, thymus and heart. IARC: Lyon; 2004.
  3. French CA, Kutok JL, Faquin WC. Midline carcinoma of children and young adults with NUT rearrangement. J Clin Oncol. 2004; 22:4135-9.
  4. French C. NUT midline carcinoma. Nat Rev Cancer. 2014; 14:149-50.
  5. Bauer DE, Mitchell CM, Strait KM. Clinicopathologic features and long-term outcomes of NUT midline carcinoma. Clin Cancer Res. 2012; 18:5773-9.
  6. Tanaka M, Kato K, Gomi K. NUT midline carcinoma: report of 2 cases suggestive of pulmonary origin. Am J Surg Pathol. 2012; 36:381-8.
  7. Evans AG, French CA, Cameron MJ. Pathologic characteristics of NUT midline carcinoma arising in the mediastinum. Am J Surg Pathol. 2012; 36:1222-7.
  8. Harms A, Herpel E, Pfarr N. NUT carcinoma of the thorax: case report and review of the literature. Lung Cancer. 2015; 90:484-91.
  9. Rosenbaum DG, Teruya-Feldstein J, Price AP. Radiologic features of NUT midline carcinoma in an adolescent. Pediatr Radiol. 2012; 42:249-52.
  10. Sholl LM, Nishino M, Pokharel S. Primary pulmonary NUT midline carcinoma: clinical, radiographic, and pathologic characterizations. J Thorac Oncol. 2015; 10:951-9.
  11. Wasserman JK, Purgina B, Sekhon H. The gross appearance of a NUT midline carcinoma. Int J Surg Pathol. 2016; 24:85-8.
  12. Bellizzi AM, Bruzzi C, French CA. The cytologic features of NUT midline carcinoma. Cancer. 2009; 117:508-15.
  13. Haack H, Johnson LA, Fry CJ. Diagnosis of NUT midline carcinoma using a NUT-specific monoclonal antibody. Am J Surg Pathol. 2009; 33:984-91.
  14. Raza A, Cao H, Conrad R. Nuclear protein in testis midline carcinoma with unusual elevation of α-fetoprotein and synaptophysin positivity: a case report and review of the literature. Expert Rev Anticancer Ther. 2015; 15:1199-213.
  15. Taniyama TK, Nokihara H, Tsuta K. Clinicopathological features in young patients treated for small-cell lung cancer: significance of immunohistological and molecular analyses. Clin Lung Cancer. 2014; 15:244-7.
  16. Lund-Iversen M, Grøholt KK, Helland Å. NUT expression in primary lung tumours. Diagn Pathol. 2015; 10:156.
  17. Stathis A, Zucca E, Bekradda M. Clinical response of carcinomas harboring the BRD4-NUT oncoprotein to the targeted bromodomain inhibitor OTX015/MK-8628. Cancer Discov. 2016; 6:492-500.
  18. Chang T, Husain AN, Colby T. Pneumocytic adenomyoepithelioma: a distinctive lung tumor with epithelial, myoepithelial, and pneumocytic differentiation. Am J Surg Pathol. 2007; 31:562-8.
  19. Matsumoto M, Sonobe H, Furihata M. A case of salivary gland-type mixed tumor of the lung differentiating toward type II alveolar epithelial cells in glandular components with a literature review. Virchows Arch. 2002; 441:618-21.
  20. McCormack FX, Travis WD, Colby TV. Lymphangioleiomyomatosis: calling it what it is: a low-grade, destructive, metastasizing neoplasm. Am J Respir Crit Care Med. 2012; 186:1210-2.
  21. Chen YB, Guo LC, Huang JA. Clear cell tumor of the lung: a retrospective analysis. Am J Med Sci. 2014; 347:50-3.
  22. Xu Q, Lu C, Li L. Clear cell tumor of the lung: two case reports and a review of the literature. Medicine (Baltimore). 2016; 95:e4492.
  23. Bonetti F, Pea M, Martignoni G. Clear cell (“sugar”) tumor of the lung is a lesion strictly related to angiomyolipoma-the concept of a family of lesions characterized by the presence of the perivascular epithelioid cells (PEC). Pathology. 1994; 26:230-6.
  24. Guinee DG, Thornberry DS, Azumi N. Unique pulmonary presentation of an angiomyolipoma. Analysis of clinical, radiographic, and histopathologic features. Am J Surg Pathol. 1995; 19:476-80.
  25. Thway K, Fisher C.. PEComa: morphology and genetics of a complex tumor family. Ann Diagn Pathol. 2015; 19:359-68.
  26. Liang W, Xu S, Chen F.. Malignant perivascular epithelioid cell neoplasm of the mediastinum and the lung: one case report. Medicine (Baltimore). 2015; 94:e904.
  27. Mengoli MC, Lococo F, Depenni R, Morandi U, Rossi G.. Malignant Pigmented Mass “Sequestrated” in the Lung: A Unique Case Report. Lun. 2016; 194:699-701.
  28. Lawson K, Maher TM, Hansell DM, Nicholson AG. Successful treatment of progressive diffuse PEComatosis. Eur Respir J. 2012; 40:1578-80.
  29. Argani P, Aulmann S, Illei PB. A distinctive subset of PEComas harbors TFE3 gene fusions. Am J Surg Pathol. 2010; 34:1395-406.
  30. Weeber F, Koudijs MJ, Hoogstraat M. Effective therapeutic intervention and comprehensive genetic analysis of mTOR signaling in PEComa: a case report. Anticancer Res. 2015; 35:3399-403.
  31. Thway K, Nicholson AG, Lawson K. Primary pulmonary myxoid sarcoma with EWSR1-CREB1 fusion: a new tumor entity. Am J Surg Pathol. 2011; 35:1722-32.
  32. Matsukuma S, Hisaoka M, Obara K. Primary pulmonary myxoid sarcoma with EWSR1-CREB1 fusion, resembling extraskeletal myxoid chondrosarcoma: case report with a review of literature. Pathol Int. 2012; 62:817-22.
  33. Nicholson AG, Baandrup U, Florio R. Malignant myxoid endobronchial tumour: a report of two cases with a unique histological pattern. Histopathology. 1999; 35:313-8.
  34. Balanzá R, Arrangoiz R, Cordera F. Pulmonary extraskeletal myxoid chondrosarcoma: a case report and literature review. Int J Surg Case Rep. 2016; 27:96-101.
  35. Jeon YK, Moon KC, Park SH. Primary pulmonary myxoid sarcomas with EWSR1-CREB1 translocation might originate from primitive peribronchial mesenchymal cells undergoing (myo)fibroblastic differentiation. Virchows Arch. 2014; 465:453-61.
  36. Fisher C. The diversity of soft tissue tumours with EWSR1 gene rearrangements: a review. Histopathology. 2014; 64:134-50.
  37. Choi YD, Kim JH, Nam JH. Aggressive angiomyxoma of the lung. J Clin Pathol. 2008; 61:962-4.
  38. Shilo K, Miettinen M, Travis WD. Pulmonary microcystic fibromyxoma: report of 3 cases. Am J Surg Pathol. 2006; 30:1432-5.
  39. Higashiyama M, Kodama K, Yokouchi H. Myoepithelioma of the lung: report of two cases and review of the literature. Lung Cancer. 1998; 20:47-56.
  40. Veeramachaneni R, Gulick J, Halldorsson AO. Benign myoepithelioma of the lung: a case report and review of the literature. Arch Pathol Lab Med. 2001; 125:1494-6.
  41. Kourda J, Ismail O, Smati BH. Benign myoepithelioma of the lung - a case report and review of the literature. Cases J. 2010; 3:25.
  42. Hashmi AA, Khurshid A, Faridi N. A large mediastinal benign myoepithelioma effacing the entire hemithorax: case report with literature review. Diagn Pathol. 2015; 10:100.
  43. Miura K, Harada H, Aiba S. Myoepithelial carcinoma of the lung arising from bronchial submucosa. Am J Surg Pathol. 2000; 24:1300-4.
  44. Masuya D, Haba R, Huang CL. Myoepithelial carcinoma of the lung. Eur J Cardiothorac Surg. 2005; 28:775-7.
  45. Wei J, Yuan X, Yao Y. Primary myoepithelial carcinoma of the lung: a case report and review of literature. Int J Clin Exp Pathol. 2015; 8(2):2111-6.
  46. Rosen LE, Singh RI, Vercillo M. Myoepithelial carcinoma of the lung: a review. Appl Immunohistochem Mol Morphol. 2015; 23:397-401.
  47. Ren L, Guo SP, Zhou XG. Angiomatoid fibrous histiocytoma: first report of primary pulmonary origin. Am J Surg Pathol. 2009; 33:1570-4.
  48. Chen G, Folpe AL, Colby TV. Angiomatoid fibrous histiocytoma: unusual sites and unusual morphology. Mod Pathol. 2011; 24:1560-70.
  49. Thway K, Nicholson AG, Wallace WA. Endobronchial pulmonary angiomatoid fibrous histiocytoma: two cases with EWSR1-CREB1 and EWSR1-ATF1 fusions. Am J Surg Pathol. 2012; 36:883-8.
  50. Tay CK, Koh MS, Takano A. Primary angiomatoid fibrous histiocytoma of the lung with mediastinal lymph node metastasis. Hum Pathol. 2016; pii:S0046-8177.
  51. Thway K, Fisher C.. Tumors with EWSR1-CREB1 and EWSR1-ATF1 fusions: the current status. Am J Surg Pathol. 2012; 36:e1-e11.
  52. Smith SC, Palanisamy N, Betz BL. At the intersection of primary pulmonary myxoid sarcoma and pulmonary angiomatoid fibrous histiocytoma: observations from three new cases. Histopathology. 2014; 65:144-6.
  53. Ishikawa Y. Ciliated muconodular papillary tumor of the peripheral lung: benign or malignant?. Pathol Clin Med. 2002; 20:964-5.
  54. Sato S, Koike T, Homma K. Ciliated muconodular papillary tumour of the lung: a newly defined low-grade malignant tumour. Interact Cardiovasc Thorac Surg. 2010; 11:685-7.
  55. Hata Y, Yuasa R, Sato F. Ciliated muconodular papillary tumor of the lung: a newly defined low-grade malignant tumor with CT findings reminiscent of adenocarcinoma. Jpn J Clin Oncol. 2013; 43:205-7.
  56. Chuang HW, Liao JB, Chang HC. Ciliated muconodular papillary tumor of the lung: a newly defined peripheral pulmonary tumor with conspicuous mucin pool mimicking colloid adenocarcinoma: a case report and review of literature. Pathol Int. 2014; 64:352-7.
  57. Kamata T, Yoshida A, Kosuge T. Ciliated muconodular papillary tumors of the lung: a clinicopathologic analysis of 10 cases. Am J Surg Pathol. 2015; 39:753-60.
  58. Lau KW, Aubry MC, Tan GS. Ciliated muconodular papillary tumor: a solitary peripheral lung nodule in a teenage girl. Hum Pathol. 2016; 49:22-6.
  59. Ishikawa M, Sumitomo S, Imamura N. Ciliated muconodular papillary tumor of the lung: report of five cases. J Surg Case Rep. 2016; 2016(8)
  60. Liu L, Aesif SW, Kipp BR. Ciliated muconodular papillary tumors of the lung can occur in western patients and show mutations in BRAF and AKT1. Am J Surg Pathol. 2016; 40:1631-6.

Affiliations

$authorString->getOrcid() =>

$authorString->getFullName() => M.C. MENGOLI

$authorString->getUrl() =>

M.C. MENGOLI

Pathology Unit, Azienda Unità Sanitaria Locale/IRCCS Reggio Emilia
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => F.R. LONGO

$authorString->getUrl() =>

F.R. LONGO

Pathology Unit, Azienda Ospedaliera per l’Emergenza Cannizzaro Hospital, Catania, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => F. FRAGGETTA

$authorString->getUrl() =>

F. FRAGGETTA

Pathology Unit, Azienda Ospedaliera per l’Emergenza Cannizzaro Hospital, Catania, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => A. CAVAZZA

$authorString->getUrl() =>

A. CAVAZZA

Pathology Unit, Arcispedale S. Maria Nuova/IRCCS, Reggio Emilia, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => A. DUBINI

$authorString->getUrl() =>

A. DUBINI

Pathology Unit, Morgagni-Pierantoni Hospital, Forlì, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => G. ALÌ

$authorString->getUrl() =>

G. ALÌ

Pathology Unit, University Hospital of Pisa, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => F. GUDDO

$authorString->getUrl() =>

F. GUDDO

Pathology Unit, Ospedale V. Cervello, Palermo, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => E. GILIOLI

$authorString->getUrl() =>

E. GILIOLI

Pathology Unit, University and Hospital Trust, Verona, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => G. BOGINA

$authorString->getUrl() =>

G. BOGINA

Pathology Unit, Sacro Cuore Don Calabria Hospital, Negrar, Verona, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => N. NANNINI

$authorString->getUrl() =>

N. NANNINI

Department of Cardiothoracic and Vascular Sciences, University of Padova, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => F. BARBISAN

$authorString->getUrl() =>

F. BARBISAN

Pathology Unit, Ospedali Riuniti of Ancona, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => N. DE ROSA

$authorString->getUrl() =>

N. DE ROSA

Department of Oncology and Anatomic Pathology, Hospital Vincenzo Monaldi of Napoli, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => G. FALCONIERI

$authorString->getUrl() =>

G. FALCONIERI

Department of Pathology, Policlinico di Cattinara, University of Trieste, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => G. ROSSI

$authorString->getUrl() =>

G. ROSSI

Pathology Unit, Azienda USL Valle d’Aosta, Regional Hospital “Parini”, Aosta, Italy
non esiste orcidID ""

$authorString->getOrcid() =>

$authorString->getFullName() => P. GRAZIANO

$authorString->getUrl() =>

P. GRAZIANO

Pathology Unit, IRCCS Casa Sollievo della Sofferenza, San Giovanni Rotondo, Foggia, Italy
non esiste orcidID ""

Copyright

© Copyright by Società Italiana di Anatomia Patologica e Citopatologia Diagnostica, Divisione Italiana della International Academy of Pathology , 2018

How to Cite

[1]
MENGOLI, M., LONGO, F., FRAGGETTA, F., CAVAZZA, A., DUBINI, A., ALÌ, G., GUDDO, F., GILIOLI, E., BOGINA, G., NANNINI, N., BARBISAN, F., DE ROSA, N., FALCONIERI, G., ROSSI, G. and GRAZIANO, P. 2018. The 2015 World Health Organization Classification of lung tumors: new entities since the 2004 Classification. Pathologica - Journal of the Italian Society of Anatomic Pathology and Diagnostic Cytopathology. 110, 1 (Mar. 2018), 39-67.
  • Abstract viewed - 2994 times
  • PDF downloaded - 1114 times
